Linear bearings are used for linear motion. They can be used to build economic and simple linear guiding systems for a wide variety of applications such as CNC.

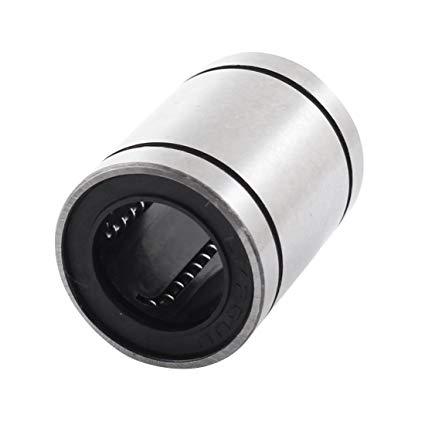

This linear ball bearing is slide along an 8mm linear shaft. These are very slim, and good for when you want to attach a motion carriage onto a railing without adding a lot of weight. These are very basic bearings, they are meant for a stepper-motion controlled.

 Specifications

• 24mm long x 15mm outer diameter x 8mm inner diameter
• Dynamic load rating C(N): 260 N
• Static load rating Co(N): 400 N
• 4 Ball races inside
• 2 grooves with 14.5mm outer diameter
