Robot Platform (2 Gear Motors + 2 Wheels + Castor)

Robot Platform (2 Gear Motors + 2 Wheels + Castor)

LE 260.00

Click here to be notified by email when Robot Platform (2 Gear Motors + 2 Wheels + Castor) becomes available.

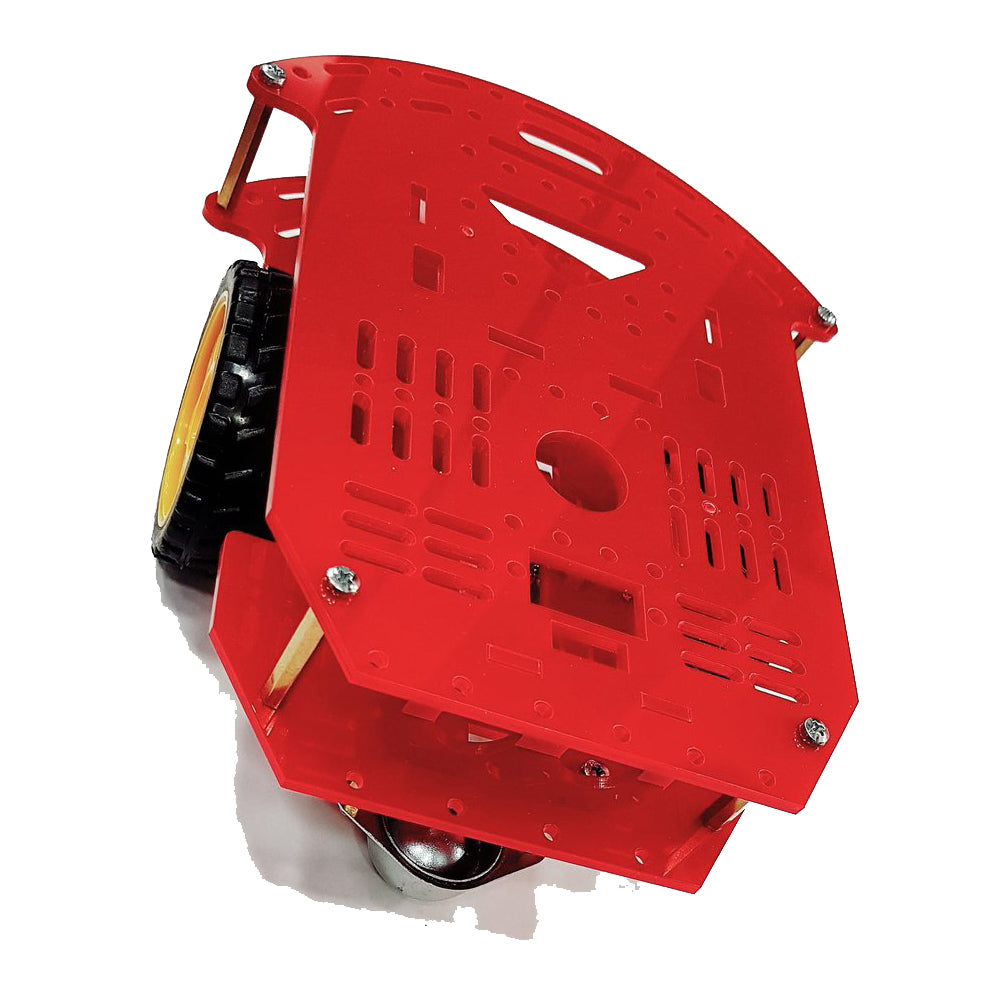

This robot features two gear motors with 65mm wheels and a rear caster. The chassis plates are cut from acrylic with a wide variety of mounting holes for sensors, controllers, power, etc. Simply bolt the two pre-cut platforms together, attach the motors and caster and add your favorite robotics controller. This kit includes all of the parts needed to assemble the chassis as well as a 4xAA battery holder with barrel jack termination.

Features

  • Max Motor Voltage: 6VDC
  • No Load Speed: 90±10rpm
  • No Load Current:190mA (max.250mA)
  • Torque: 800 gf.cm
  • Stall Current: ~1A
  • 65mm Diameter Wheels (30mm Wide)
  • Plastic Rims with Solid Rubber Tires
  • Dimensions: 110 x 174mm

Part List

  • Chassis-up: 1 pc
  • Chassis bottom: 1 pc
  • Motor holder: 4 pc
  • Speed board holder: 2 pc
  • Motor: 2 pc
  • Castor (omni wheel): 1pc
  • Wheel: 2 pieces
  • Ultrasonic holder: 1 pc
  • L25 spacer: 6 pc
  • M3*30 screw: 4 pc
  • M3*10: flathead screw 10 pc
  • M3: nut 6 pc
