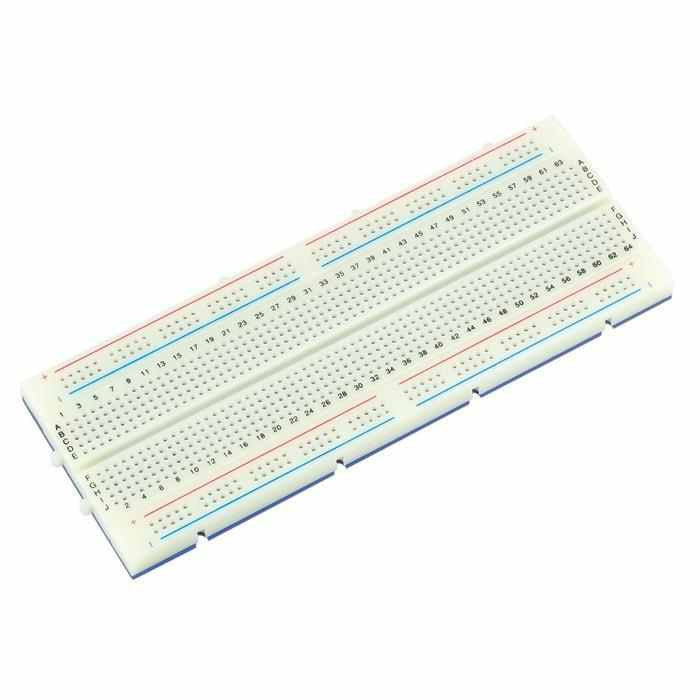

Breadboard 840 Pin

Breadboard 840 Pin

LE 30.00

Click here to be notified by email when Breadboard 840 Pin becomes available.


Breadboard,  840 Pin

 Specifications

  • Board Thickness:                  8.5mm
  • External Width:                      66mm
  • Connector Type:                    Phosphor Bronze Nickel Plated Spring Clips
  • External Depth:                     8.5mm
  • External Length / Height:     174mm
  • Hole Pitch:                             2.54mm
  • Lead Diameter Max:             0.8mm
  • Lead Diameter Min:              0.3mm
  • Material:                                ABS
  • No. of Holes:                         840
  • PCB Hole Diameter:             0.8mm
  • Pitch Spacing:                       2.54mm
  • Row Pitch:                             2.54mm
