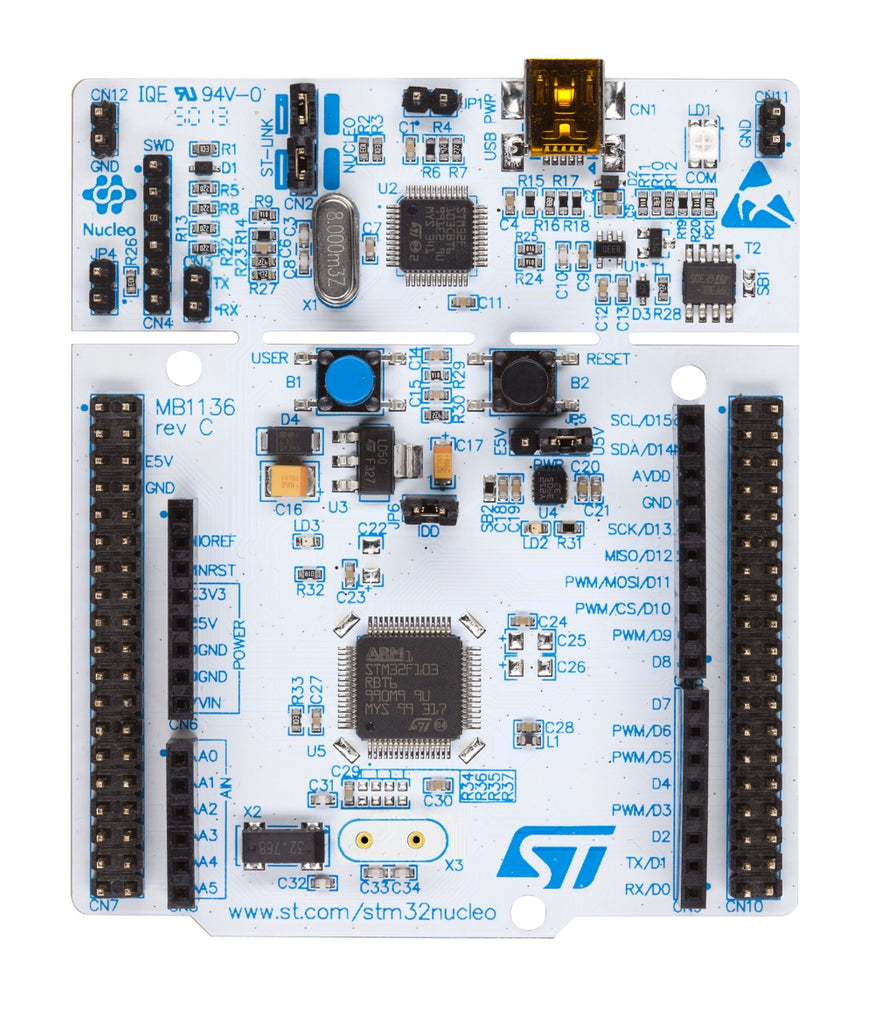

NUCLEO-F103RB (STM32 ARM Cortex Processing Board)

NUCLEO-F103RB (STM32 ARM Cortex Processing Board)

LE 750.00

Click here to be notified by email when NUCLEO-F103RB (STM32 ARM Cortex Processing Board) becomes available.

The whole series of NUCLEO development boards is equipped with a STM32 microcontroller based on ARM Cortex-M family, adopting a 32-bit RISC architecture. This means extremely high performance microcontroller for serious applications (image processing, real time control, high speed procesing applications).

The NUCLEO development boards, produced by STMicroelectronics, keeps compatibility with Arduino expansion connectors so that we can use its commonly available shields. Provided with the STM32 Nucleo boards, the STM32Cube software packages come with several examples. All STM32 Nucleo users have free access to the mbed online resources (compiler, C/C++ SDK, and developer community)


  • STM32 STM32F103RBT6
  • ARM®32-bit Cortex®- M3 CPU
  • 72 MHz  CPU frequency
  • 128 KB Flash
  • 20 KB SRAM
  • GPIO (51) with external interrupt capability
  • 12-bit ADC with 16 channels
  • RTC
  • Timers (4)
  • I2C (2)
  • USART (3)
  • SPI (3)
  • USB 2.0 full-speed
  • CAN
