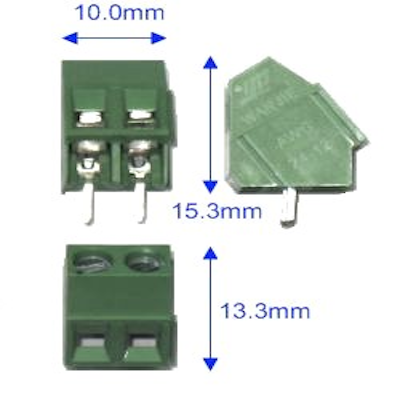

Rising Clamp Terminal Block-2Pin

Rising Clamp Terminal Block-2Pin

LE 2.00

Click here to be notified by email when Rising Clamp Terminal Block-2Pin becomes available.


Specification
  • Pitch: 5mm
  • Screws: M2.5 steel Zinc plated
  • Wire guard: Phosphor bronze, Ni plated
  • Pin header: Brass, Tin plated
  • Housing: PA66, UL94V-0

Electrical

  • Rated voltage: 300V
  • Rated current: 10A
  • Contact resistance: 20mΩ
  • Insulation resistance: 5000MΩ/1000V
  • Withstanding voltage: AC 2000V/1 Min
  • Wire range: 24-12AWG 2.5MM2

Mechanical

  • Temp. Range: -40℃~ +105℃
  • MAX Soldering: +250℃, for 5 Sec.
  • Torque: 0.4Nm(3.6lb.in)
  • Strip length: 6-7mm
