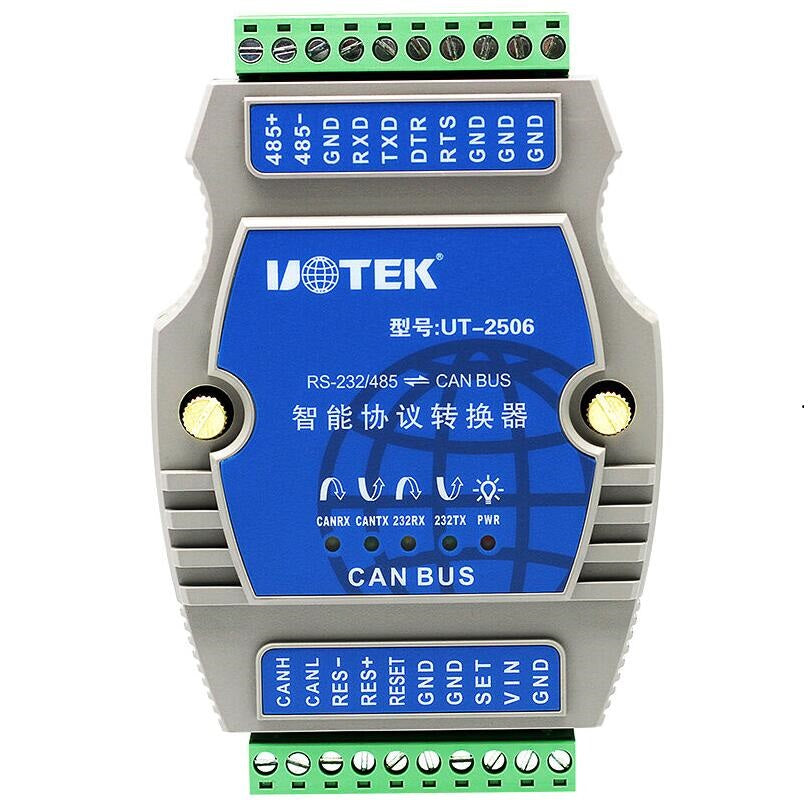

UT-2506A is a high performance RS-232/485 to CAN-Bus converter. It supports interconnection between RS-232/485 and CAN-Bus. RS-232/485 baud rate is 1,200-115,200bps, and CAN-bus baud rate is 5kbps-1Mbps.The converter supports three data conversion modes: transparent conversion, transparent tape identification conversion and Modbus protocol conversion. This extends the application scope of this converter.
UT-2506A converter provides configuration tools that allow users to set the interface parameters. It is industrial standard design; CAN communication interface and system is isolated; with anti-interference and surge protection ability, it is widely used in industrial control, data communication systems.
Specifications
- Supports bidirectional data transmission between CAN-bus & RS-232/485
- Supports CAN 2.0 protocol
- Provides 3 data conversion mode: transparent conversion, transparent tape identification conversion, Modbus protocol conversion
- Operating voltage: 12-36 VDC
- Isolated voltage: 1,000VDC
- Dimension: 120×80×25mmIndustrial RS-232/485 to CAN BUS Converter UT-2506A) driver
-
