Advanced Flame Sensor

Advanced Flame Sensor

LE 95.00

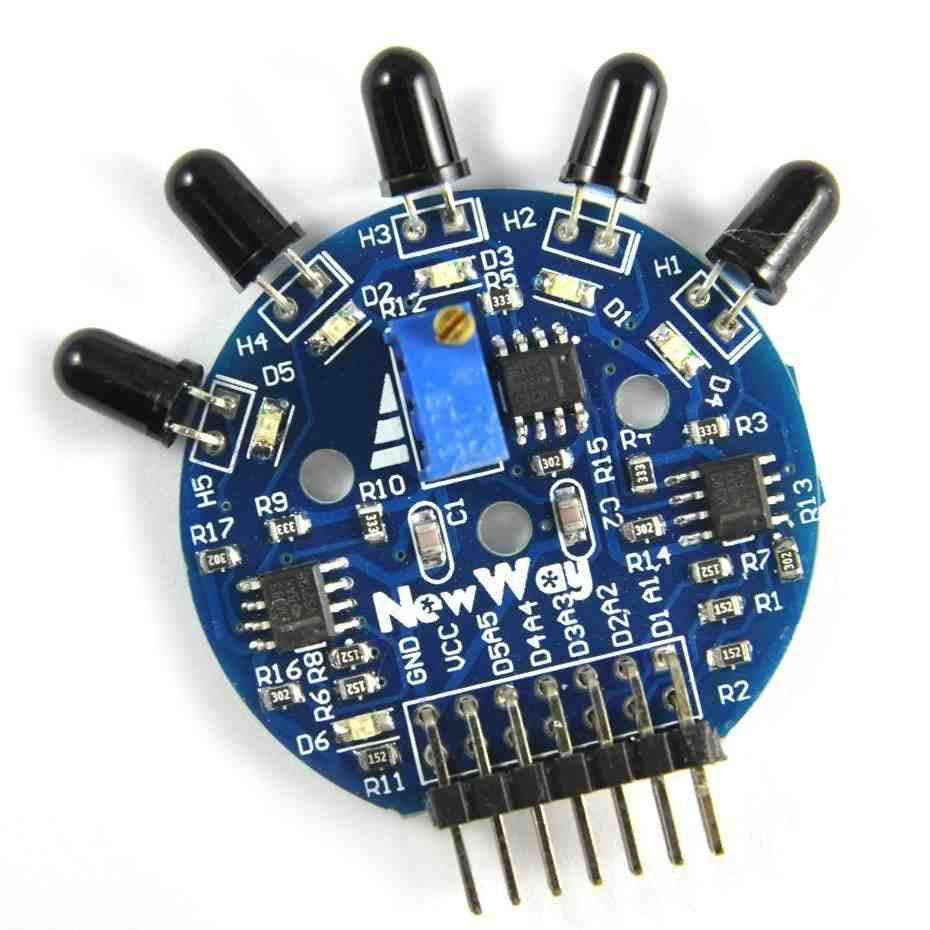

This is high accuracy flame detector module. It is used for detecting direct fire (as it detects fire radiation). The module uses 5 flame sensors. It can output both analog and digital signals. The sensitivity of the sensor can be adjusted using the on board potentiometer. The sensor have a wide detection angle (more than 120 degree) and 5 LED indicators (one for each sensor).

Specification

  1. Input Voltage:                             3.3V~9V
  2. Dtection Range:                         ~ 1.5 meter
  3. Detecting Angle:                        >120 degree
  4. Wavelength Detection Range:   700:1100

Features

  1. Analog / Digital outputs
  2. On-board potentiometer for adjusting sensitivity
  3. Wide angle detection
  4. LED indicators

Pin Definition

  • GND:   Ground
  • VCC:   Input voltage (3 : 9v)
  • A1, A2, A3, A4, A5:  Analog output
  • D1, D2, D3, D4, D5: Digital output
