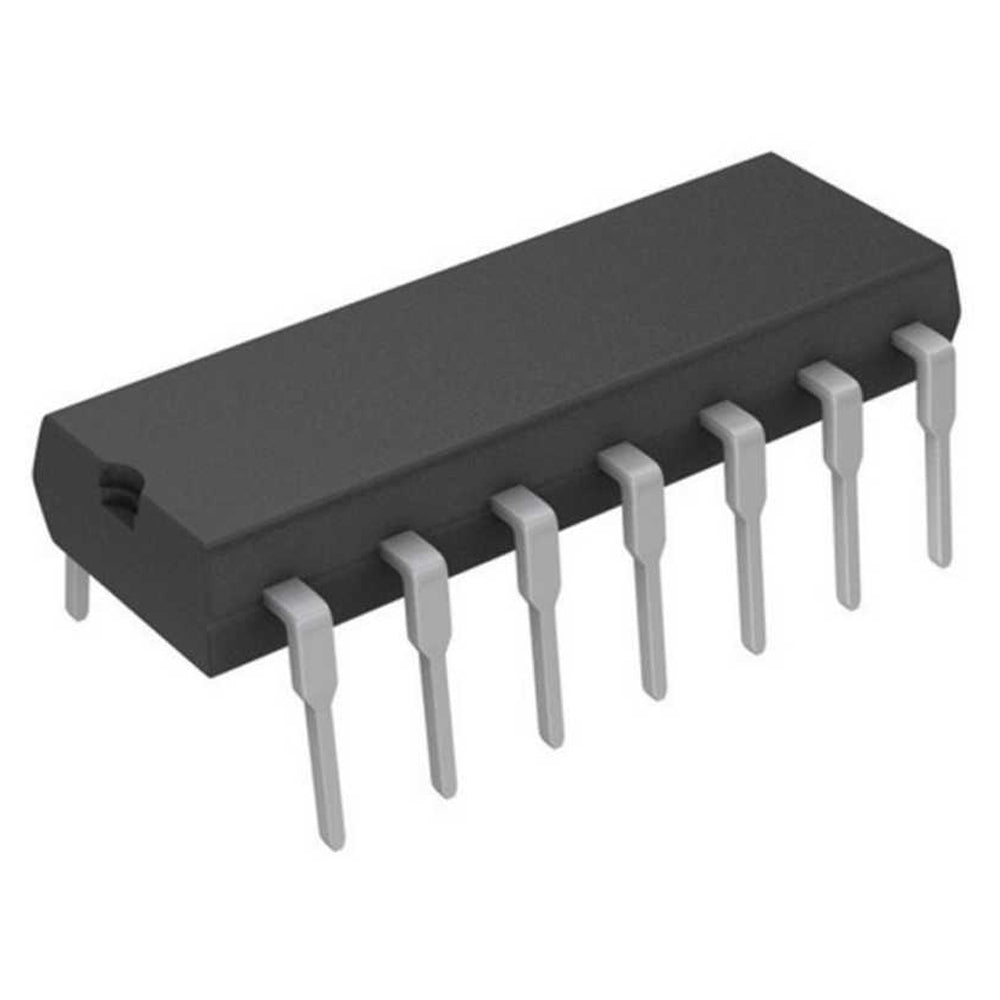

74HC14 is a Hex Inverting Schmitt Trigge
It provides six inverting buffers with Schmitt-trigger action. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.
Specification
- Propagation Delay Time: 125 ns at 2V / 21 ns at 6V
- No. of Gates:6
- Output Current: 5.2 mA at 6 V
- No. of Inputs: 1X 6
- No. of Pins: 14
- Operating Temperature Range: -40°C to +125°C
- Supply Voltage Range: 2V to 6V
- Package: DIP-14
For 74HC14 datasheet Click Here
