74HC75 (Quad Bistable Transparent Latch)

74HC75 (Quad Bistable Transparent Latch)

LE 12.00

The 74HC75 have four bistable latches. The two latches are simultaneously controlled by one of two active HIGH enable inputs (LE1-2 and LE3-4). When LEn-n is HIGH, the data enters the latches and appears at the nQ outputs. The nQ outputs follow the data inputs (nD) as long as LEn-n is HIGH (transparent). The data on the nD inputs one set-up time prior to the HIGH-to-LOW transition of the LEn-n will be stored in the latches. The latched outputs remain stable as long as the LEn-n is LOW.


Logic Type: D-Type Transparent Latch.
Circuit: 2:2.
Output Type: Differential.
Voltage - Supply: 2V ~ 6V.

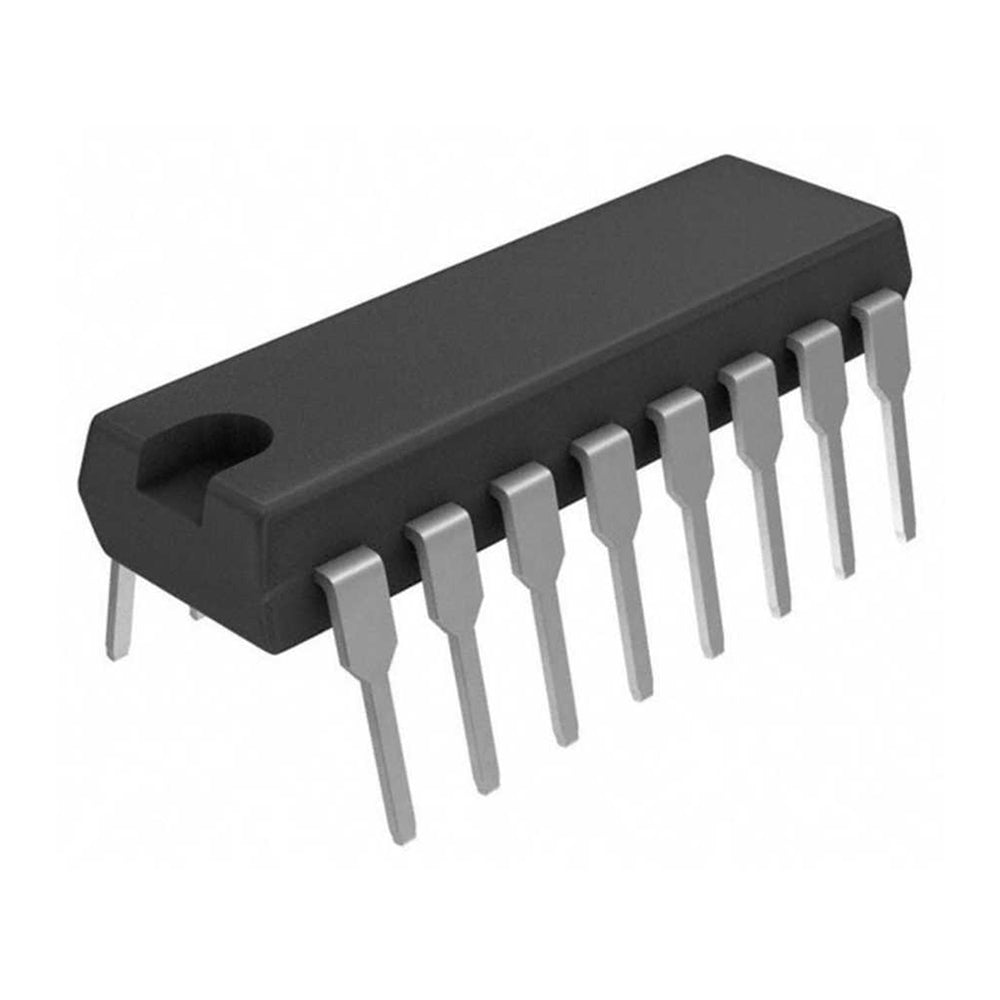

Package / Case: 16-DIP (0.300", 7.62mm).

74HC75 datasheet
