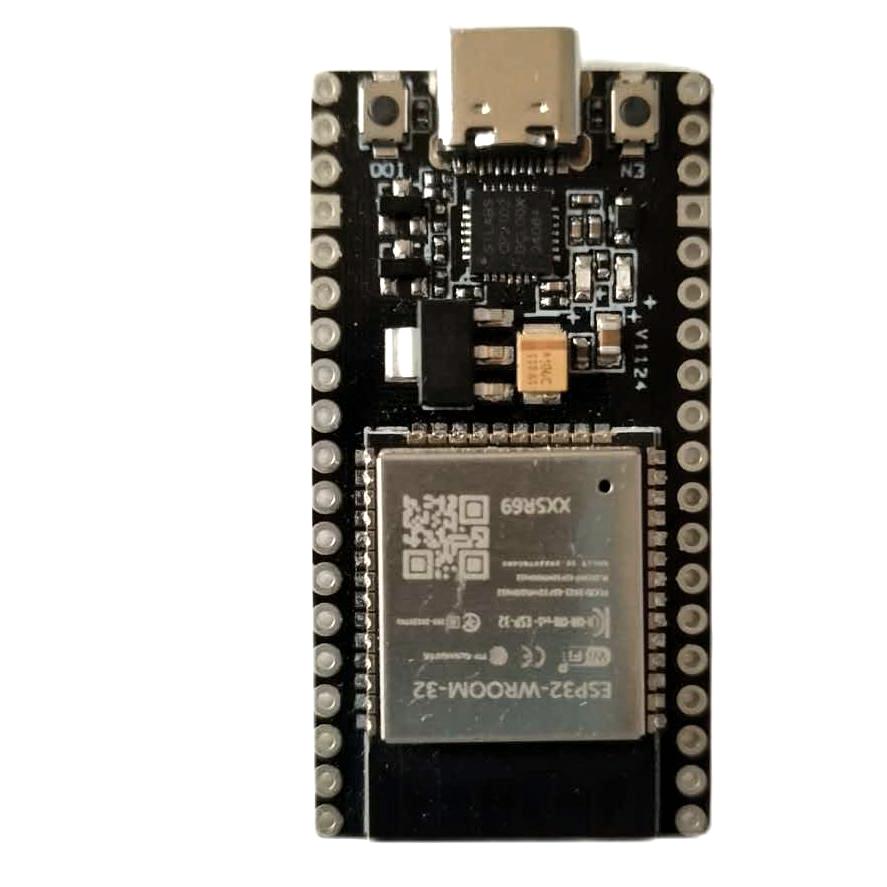

ESP WROOM 32 MCU ESP32 Development Module 38 Pin is a powerful, generic WIFI-BT-BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks,
The user may also power off the CPU and make use of the low-power coprocessor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32S integrates a rich set of peripherals, ranging from sensors and , high-speed SDIO/SPI, UART, and I²C.
Using Bluetooth, users can connect to their phone or broadcast low energy beacons for its detection. The use of Wi-Fi enables a large physical range, as well as a direct connection to the internet via a Wi-Fi router. Perfect for wearable electronic or battery-powered applications, the ESP32 chip uses less than 5µA.
Features :
- Integrated 520 KB SRAM.
- Hybrid Wi-FI & Bluetooth.
- High level of integration.
- Ultra-low-power management.
- 4 MB Flash.
- On-board PCB antenna.
Specifications:
- Operating voltage (v): 2.3 ~ 3.6
- Operating current (mA): 80
- Clock Frequency (MHz): 80 ~ 240
- Flash memory (MB): 4
- Data Rate (Mbps): 54
- SRAM Memory (KB): 512
- Length (mm): 49.5
- Width (mm): 26.5
- Height (mm): 11.5
- Weight (gm): 10
