STM32F103C6T6 (STM32 Minimum System Development Board)

STM32F103C6T6 (STM32 Minimum System Development Board)

LE 140.00

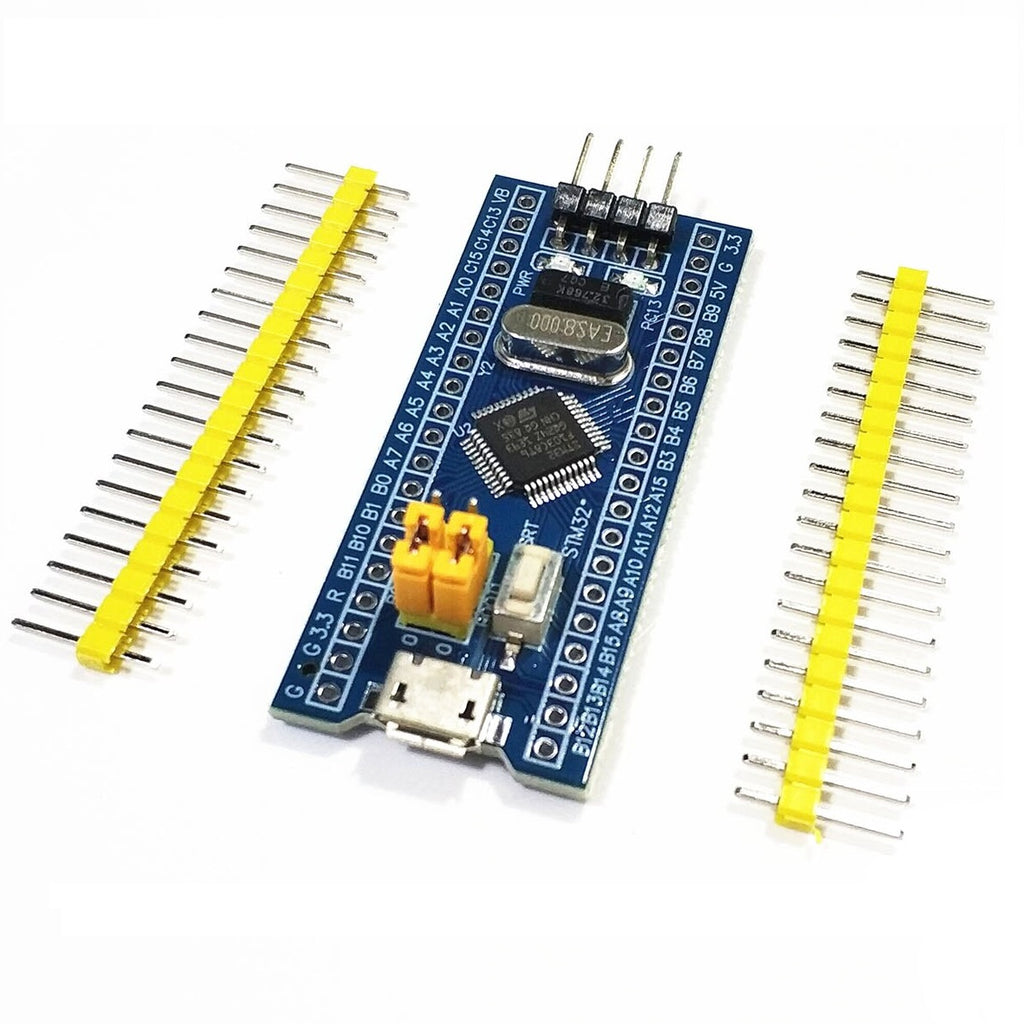

This STM32 minimum system board is based on ST Microelectronics STM32F103C6T6 microcontroller that has an ARM Cortex-M3 core that runs at 72MHz max. Software libraries are available that allow users to program the chip using the Arduino IDE.

It is possible to use our STLink V2 device programmer to debug and download code into the board.


  • Microcontroller:    STM32F103C6T6
  • ARM® 32-bit Cortex® -M3 CPU
  • 72 MHz max CPU frequency
  • Voltage from 2 V to 3.6 V
  • 32 KB Flash
  • 10 KB SRAM
  • Communication:    I2C, SPI, UART, CAN, USB
  • GPIO with external interrupt capability
  • Up to 6 Timers (2 x 16-bit timers, 1 x PWM timer, 2 x watchdog timers and a SysTick timer)
  • RTC

 Getting Started with STM32 (Blue Pill) using Arduino IDE: Blinking LED
