Flexible Coupler (5mm to 10 mm)

Flexible Coupler (5mm to 10 mm)

LE 90.00

Click here to be notified by email when Flexible Coupler (5mm to 10 mm) becomes available.

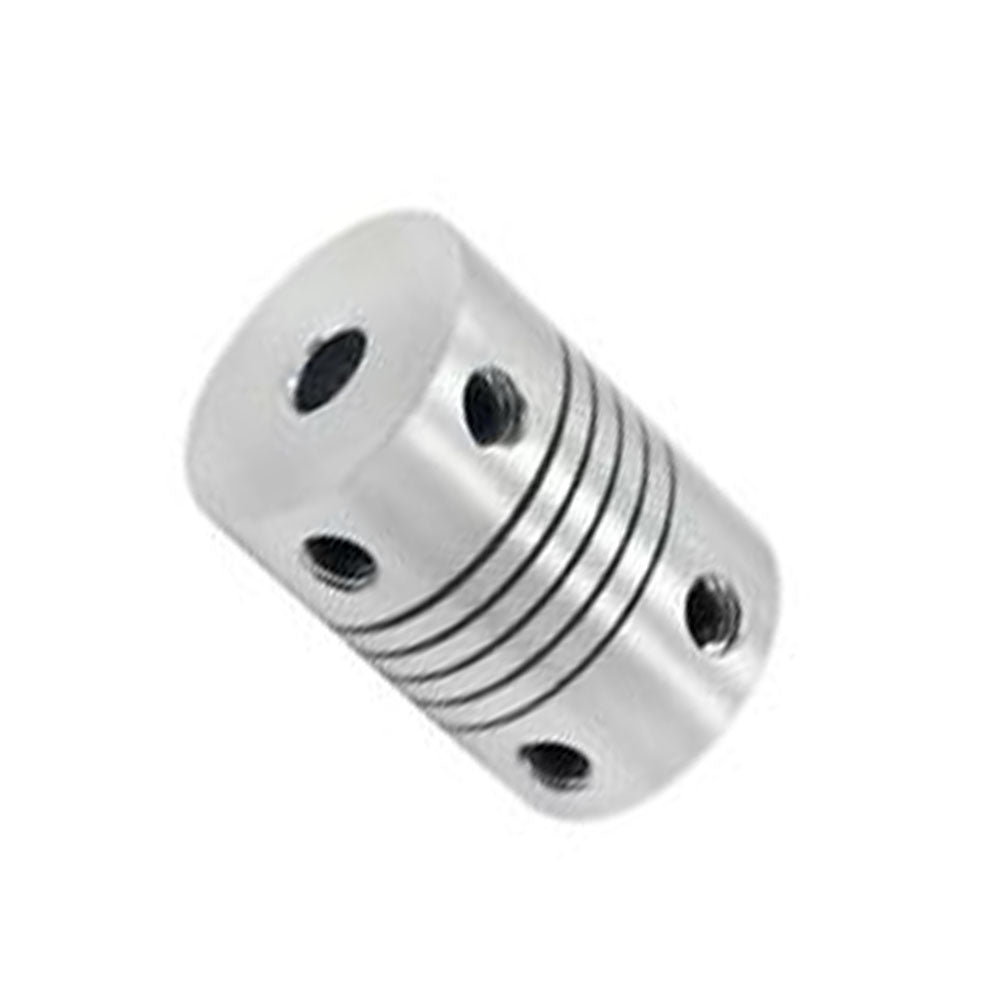

Connect motor shaft to anything else with a set-screw coupler. These couplers are made of machined aluminum and have a spiral cut that makes them slightly flexible so they can be fit to two shafts even if they are not perfectly co-linear and will help reduce bending effects.

The way they are cut, create a spring effect in the X Y & Z linear axis but not in the rotational axis. That means that you will not get increased backlash - so they're suitable for precision CNC work.

This coupler will connect a 5mm diameter shaft to an 10 mm diameter shaft Comes with two sets of double set-screws (two per side) for secure attachment. You'll need a 2mm allen wrench to tighten/loosen the set-screws.



  • 5mm inner diameter / 10mm inner diameter
  • Outer diameter 19mm
  • Weight: 18 grams
  • Height : 25
