UT-6801A supports data conversion from serial terminal to TCP/IP. It realizes transparent bi-directional data transmission between RS-232/485/422 port and TCP/IP Ethernet port, which enables the serial device to have networking functions. UT-6801A integrated with ARP, IP, TCP, HTTP, ICMP, UDP and other protocols. The setup wizard makes you easy to operate it. It is widely used in industrial control, industrial automation, IoT, environmental monitoring, intelligent transportation, dynamic monitoring and other related fields.

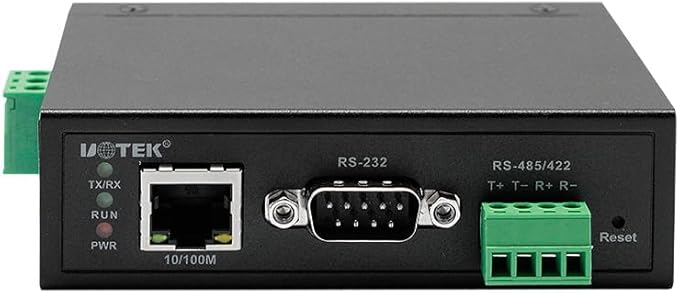

Model： UT-6801A
● 1* RS-232/485/422 port
● 1* 10/100Base-T(X) Ethernet port
● Reset button for factory default
● RS-232 signal: RXD, TXD, RTS, CTS, GND
● RS-485/422 signal: T/R+, T/R-, R+, R-
● Supports MCP, VCOM
● Serial port ±6KV ESD protection, Ethernet port 1.5KVAC isolated protection
● Supports heart-beat package, register package function
● Support WEB firmware upgrade
Model： UT-6801A
