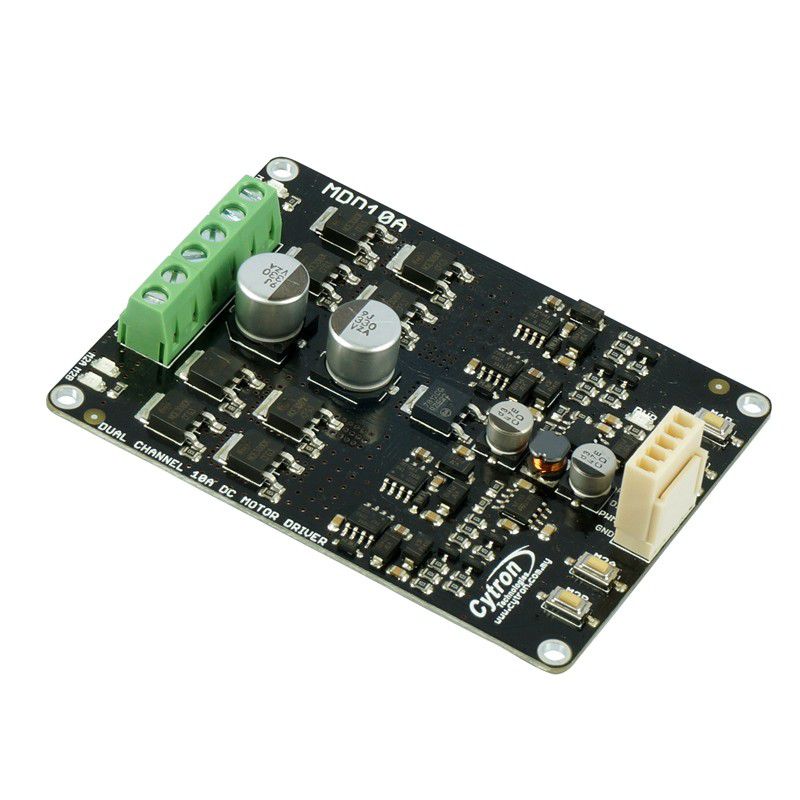

Cytron Dual Channel 10A DC  ( 5 - 30 V )  MDD10A. Motor Driver

Cytron Dual Channel 10A DC ( 5 - 30 V ) MDD10A. Motor Driver

LE 1,960.00


This is a dual motor  MDD10A   driver which is designed to drive 2 DC motor with high current up to 10A continuously and 30A peak. The driver works in voltage range from 5 to 25 V. It also includes fast test switch for driver testing.

This driver supports locked-antiphase and sign-magnitude PWM signal. It uses full solid state components which result in faster response time and eliminate the wear and tear of the mechanical relay.

Features

  • Bi-directional control for 2 brushed DC motor.
  • Support motor voltage ranges from 5V to 30V .
  • Maximum current up to 10A continuous and 30A peak (10 second) for each channel.
  • Solid state components provide faster response time and eliminate the wear and tear of mechanical relay.
  • Fully NMOS H-Bridge for better efficiency and no heat sink is required.
  • Speed control PWM frequency up to 20KHz.
  • Support both locked-antiphase and sign-magnitude PWM operation.
  • 2 activation buttons for fast test on each channel.

Dimension: 84.5mm x 62mm



For Dual DC motors 10A driver manual, click here

Using MDD10A with Arduino
