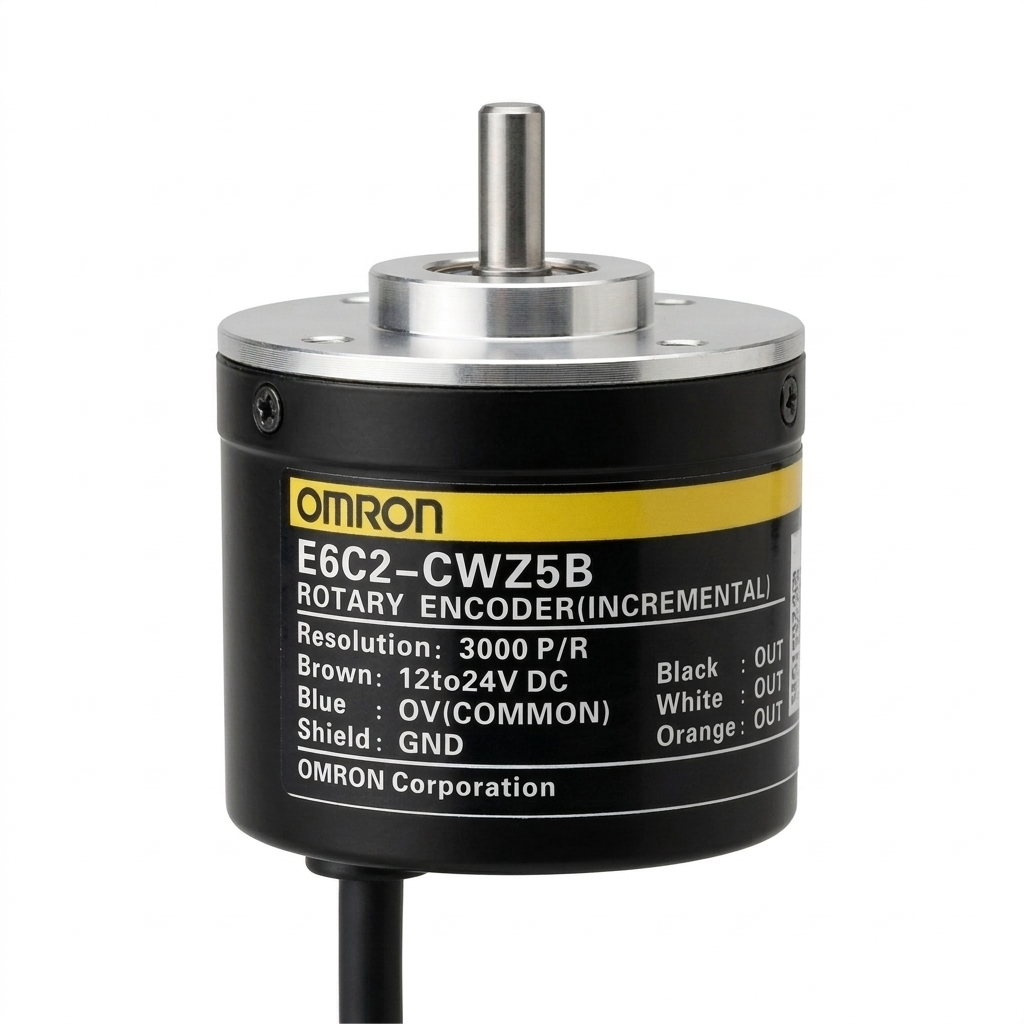

The E6C2-CWZ5B is a high-performance, incremental rotary encoder manufactured by Omron. It is part of the E6C2 series, which is designed for more demanding industrial environments compared to the standard E6B2 series.

 specifications and features:

1. Key Technical Specifications

2. Output Type: Complementary

The "5B" in the model name indicates a Complementary Output. This is a versatile industrial output that uses two transistors (one to pull the signal to VCC and one to pull it to Ground).

• Universal Compatibility: It can be wired to NPN (Sink) or PNP (Source) PLC inputs.

• High Noise Immunity: It provides a cleaner signal over longer distances compared to open-collector types.

• Line Driving: It includes inverted signals (A-bar, B-bar, Z-bar) which help eliminate electromagnetic interference (EMI) when used with compatible controllers.

3. Wiring and Signal Assignment

The encoder typically uses a shielded cable with the following color codes:

• Brown: Power Supply (+Vcc: 12-24V)

• Blue: Ground (0V / GND)

• Black: Phase A (Main pulse)

• White: Phase B (Direction pulse, 90° offset from A)

• Orange: Phase Z (Index pulse, once per revolution)

• Black/White Line: Phase -A (Inverted A)

• White/Red Line: Phase -B (Inverted B)

• Orange/White Line: Phase -Z (Inverted Z)

4. Physical Durability

• Shaft Loading: It is built to handle significant mechanical stress (Radial: 50N / Thrust: 30N).

• Construction: It features a robust metal housing and a 6mm solid stainless steel shaft.

• Operating Temp: It functions reliably between -10°C to +70°C.

Summary

The E6C2-CWZ5B is the "rugged" choice for automation. If you are replacing an E6B2-CWZ6C, the E6C2-CWZ5B is a significant upgrade in terms of water/dust resistance (IP64 vs IP50) and signal strength.

Note: Since this model operates at 12-24V, ensure your controller (like an Arduino) has a level shifter or voltage divider if it only accepts 5V signals.
