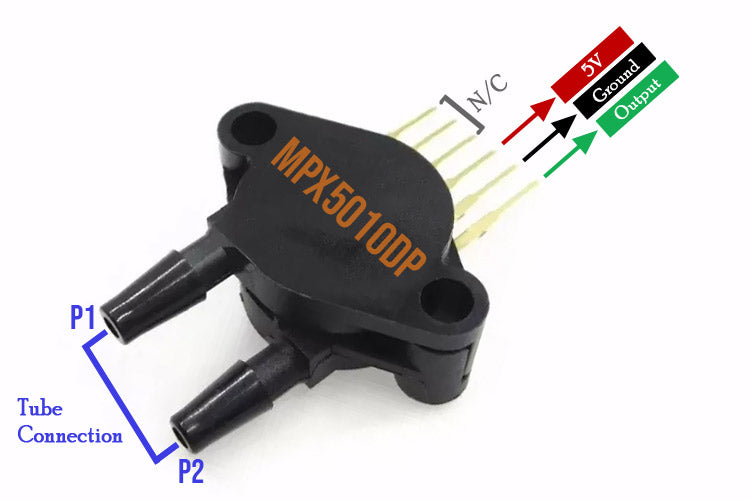

The MPX5010DP differential pressure sensors provide a highly accurate and linear voltage output directly proportional to the applied pressure.
The MPX5010DP can be directly connected to your MCU (Arduino-STM-Microcontroller-Tiva C) without the need for any amplifying or signal conditioning circuit. This makes this differential pressure sensor easy to use and calibrate even for non-professional users.
Features
- Rated maximum pressure difference: 0 to 10 Kpa (0 to 1.45 psi)
- Voltage supply: 5V
- Analog output range: 0.2 to 4.7 V (Built in Amplifier)
- Temperature Compensated Over -40°C to +125°C
Applications
- Respiratory Systems
- Hospital Beds
- Pump/Motor Controllers
- Robotics
- Medical Diagnostics and instrumentation
- Pressure Switching
- Level Indicators
Instructables showing how to use the MPX5010DP differential pressure sensors with Arduino and code.
