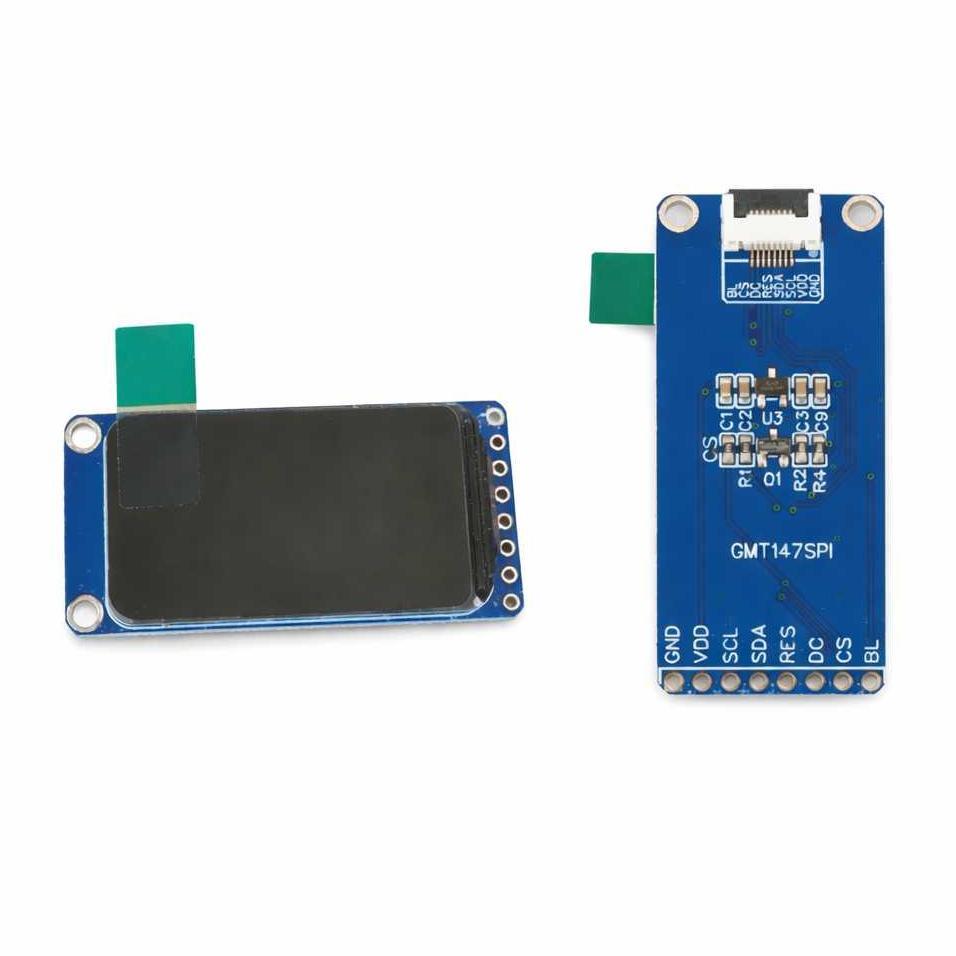

This compact TFT display module offers a vibrant color screen approximately 1.47 inches in size. Utilizing an SPI interface, it is ideal for small embedded projects, offering sharp visuals and reliable performance in a compact form factor.

Specifications:

Type: TFT LCD
Size: Approximately 1.47 inches
Interface: SPI   (Serial Peripheral Interface)
Controller:  ST7789V3
Resolution:  128x160 pixels
Operating Voltage: Typically 3.3V to 5V
Application: Suitable for small embedded projects, Arduino, etc.
Now, feel free to copy and use it directly! Let me know when you're ready for the second display.

PINs

GND: Ground (common ground connection)
VDD: Power supply (positive voltage input)
SCL: Serial Clock (clock line for SPI)
SDA: Serial Data (data line for SPI)
RES: Reset (resets the display)
DC: Data/Command (selects between data or command mode)
CS: Chip Select (enables/disables the display communication)
BL: Backlight (controls the screen backlight)

Mechanical Dimensions
• PCB Size
 • Width: 35.69 mm
 • Height: 46.74 mm
• LCD Area
 • Width: 33.90 mm
 • Height: 37.30 mm
• Viewing Area (V.A)
 • Width: 28.86 mm
 • Height: 32.10 mm
• Active Area (A.A)
 • Width: 26.86 mm
 • Height: 28.03 mm
• PCB Thickness
 • Approximately 2.65 mm
• Pin Pitch
 • 2.54 mm
