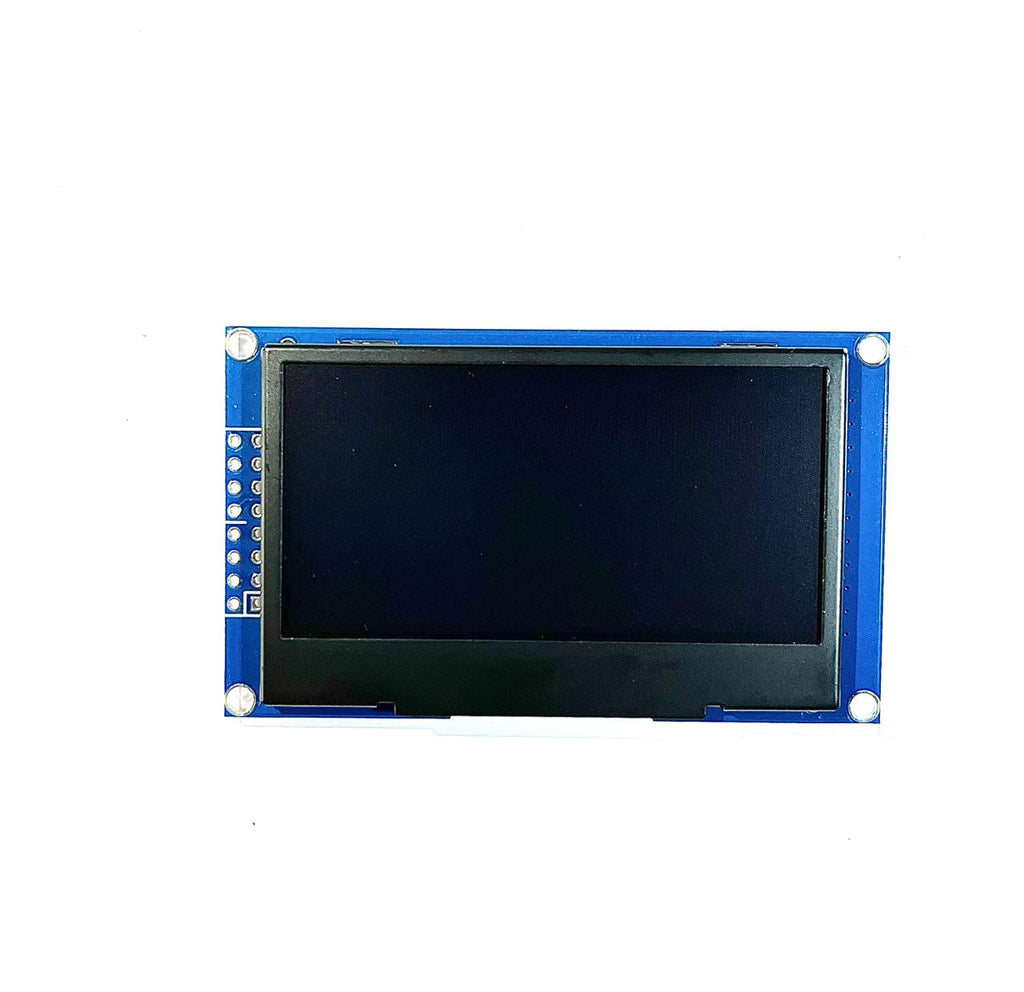

Compact Size: At just 2.42 inches, this OLED module is an ideal fit for space-constrained projects, without compromising on quality.
-
Versatile Interface Options: Equipped with both SPI and IIC I2C Serial Interface, this OLED module seamlessly integrates with Arduino UNO and STM.
-
Oled Screen I2c|2.42 Oled Display SSD1309 High Resolution Display: Boasts a crystal-clear 128*64 resolution, perfect for detailed visuals on your 2.42 inch OLED screen.
-
Customizable Design: The is customized feature allows for personalized design, tailoring the 2.42 OLED display to your specific needs.
- 2.42” OLED monochrome screen,
- 128x64 resolution, clear display effect, high contrast
- Large viewing angle: greater than 160 ° (the screen with the largest viewing angle in the display screen)
- Wide voltage power supply (3V~5V), compatible with 3.3V and 5V logic levels, without the need for level conversion chips

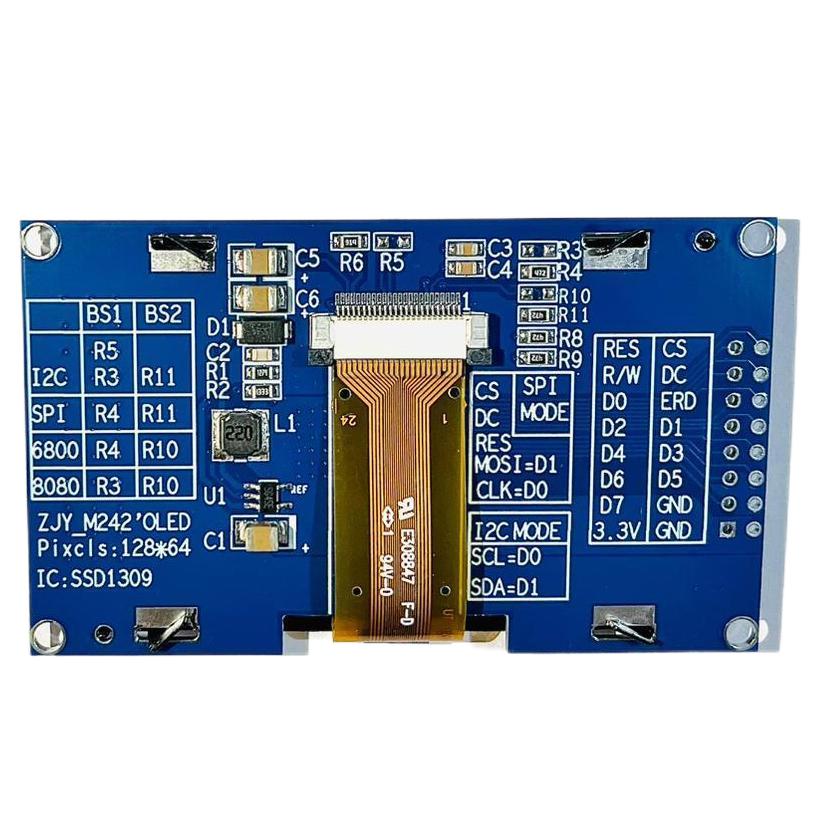

- 4-wire SPI serial bus is used, supporting I2C use D0=SCL ,D1=SDA
- Equipped with an iron frame, it can effectively protect the display screen
- Ultra low power consumption (much lower than TFT display screen)
- Provide rich example learning programs (ESP32/STM32/ Arduino/C51/CH32/RaspberryPi)
- Provide low-level driver technical support, and update WIKI information online
- Multiple tests for module aging can meet military level standards, supporting long-term stable work
