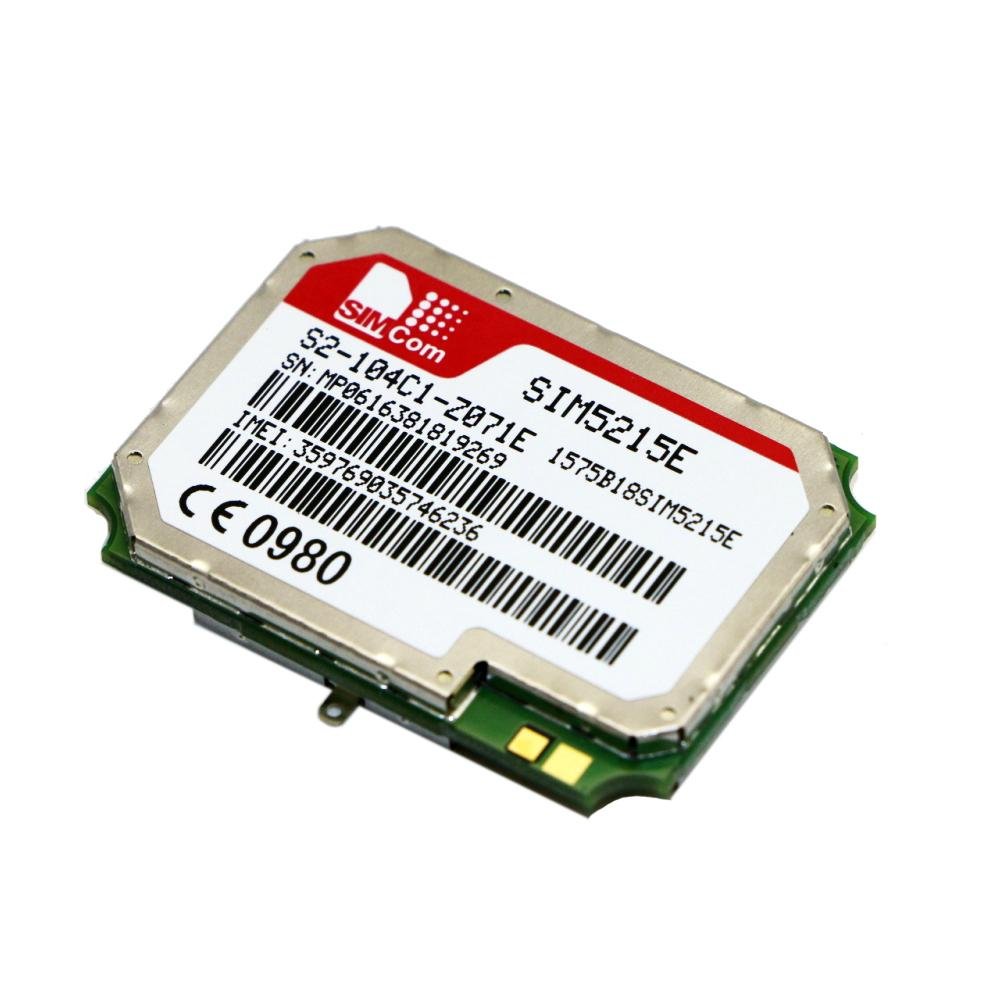

The SIM5215 series is Multi-Band WCDMA/GSM/GPRS/EDGE module solution which supports WCDMA 384Kbps for data transfer. With abundant application capability like embedded LUA script, TCP/UDP/FTP/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application. Its unique camera/video call feature shall add value to security solutions. It is ideal for a wide range of products including AMR, Gateway, Telematics, Tracking solution, Security solution and much more.
General features
- SIM5215EDual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800MHz
- Control Via AT Commands
- Supply voltage range: 3.3V~ 4.2V
- Dimension: 36mm × 26mm × 4.7mm
Support embedded Script Language
LUA Script Language
Specifications for Data transfer
- WCDMA - Max.384Kbps(DL), Max.384Kbps(UL)
- EDGE Class - Max. 236.8Kbps(DL),Max.118Kbps(UL)
- GPRS - Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
- CSD - GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
Specifications for SMS
- Point to point MO and MT
- Text and PDU mode
Specifications for video call
- DTMF on H245
- Support standard WCDMA 64kbps(CS) Video call
Other features
- USB Driver for Microsoft Windows
- USB Driver for Linux
- Firmware update via USB
- FTP/HTTP/HTTPS/SMTP/POP3
