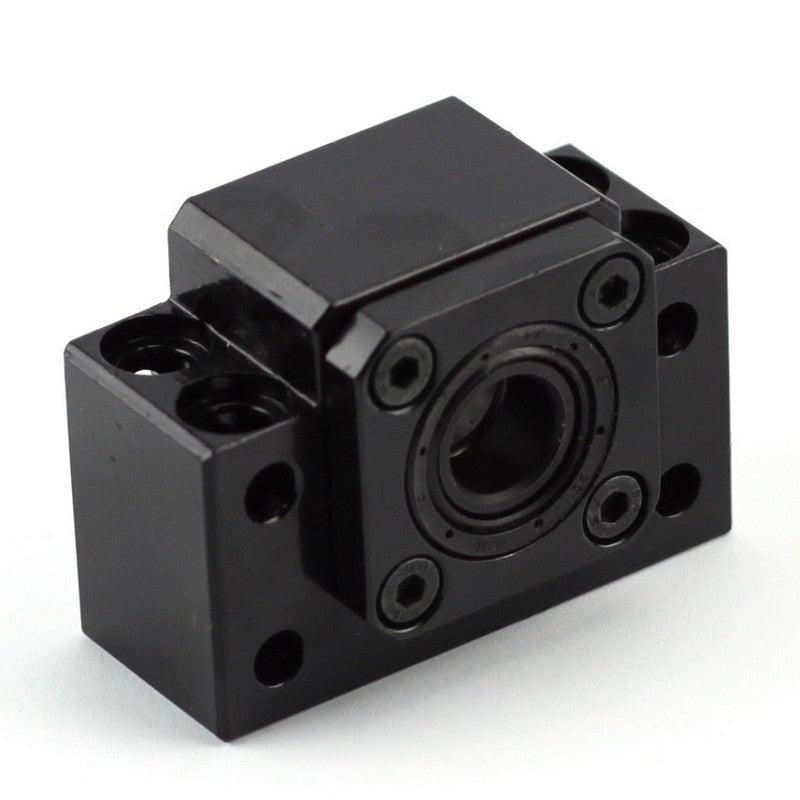

Ball Screw Fixed End Support (BK15)

Ball Screw Fixed End Support (BK15)

LE 860.00


The BK15 Support Unit for Ball Screws is used as fixed End Support Bearings for ballscrew. They are designed to take the axial and radial load. These end support ball bearings are designed so that the bearing stiffness is greater than conventional bearings, which allows the machine structure to hold accurate position under heavy load. Therefore, end support bearings are used in linear motion actuators of high precision and speed.

The BK15 Ballscrew Fixed support is used with the ballscrew SFU2005 (SFU20xx series). It is assembled of:

      • Housing
      • Angular ball bearing - 2pcs.
      • Housing lid
      • Spacer ring
      • Seal
      • Locknut
      • Hexagon socket screw

ball screw assembly

 Bk15 ballscrew fixed end support datasheet
