“Long Stainless Steel Lever with Curved Tip for Extended Reach and Smooth Actuation”
Professional Product Overview

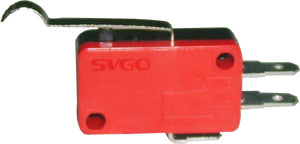

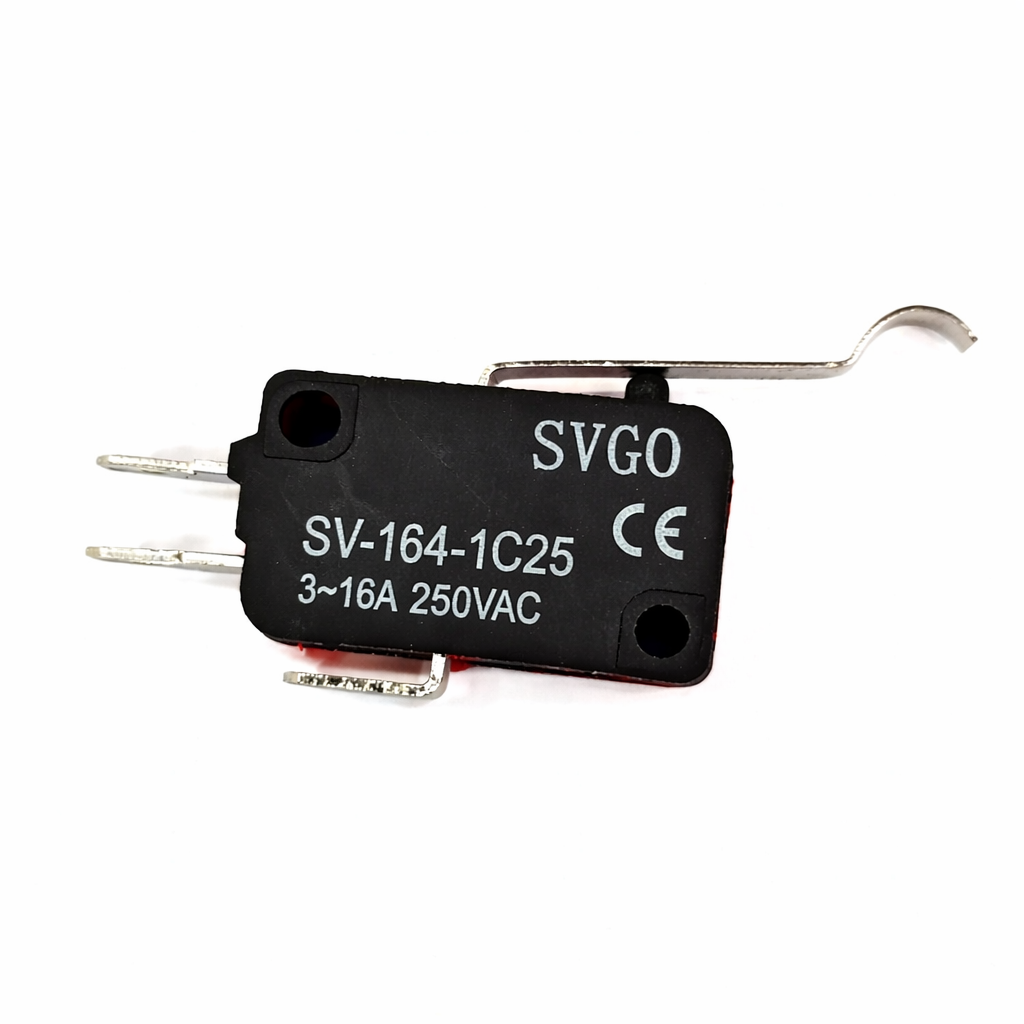

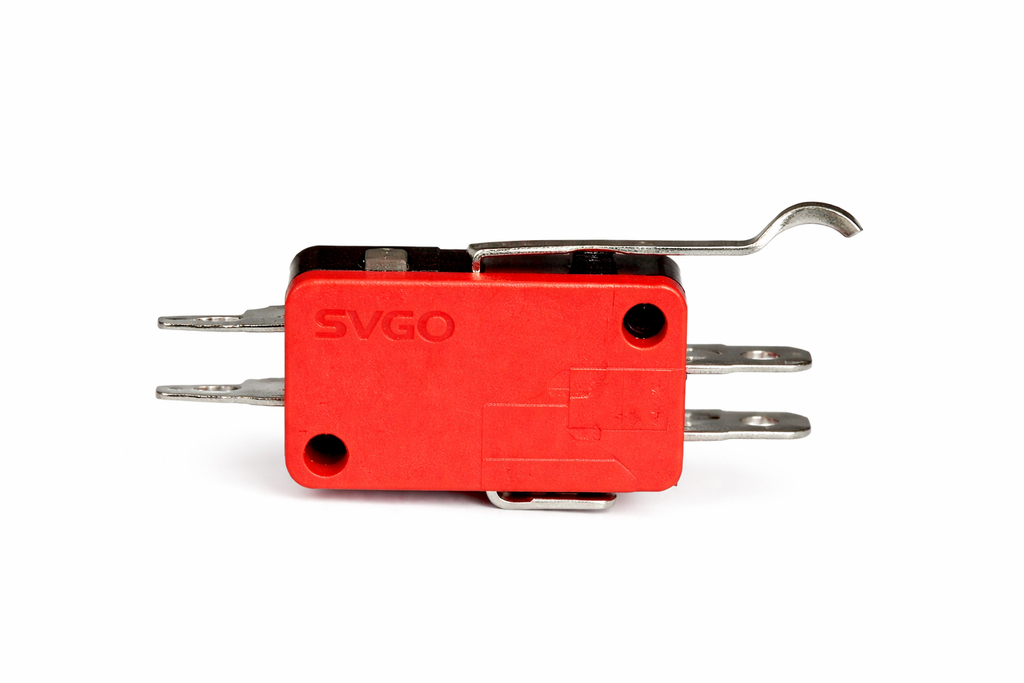

The SVGO SV-164-1C25 Micro Switch is a high-quality switching component designed for precision control and mechanical limit detection. It features a long metal lever actuator that enhances sensitivity and allows activation with minimal force, making it ideal for applications requiring extended reach or flexible triggering.
Built for durability and consistent performance, this switch ensures reliable operation in both industrial and consumer environments.
Key Advantages
- Extended lever design for higher sensitivity and easier actuation
- Supports current up to 16A for versatile applications
- Fast and accurate switching response
- Compact body with strong mechanical structure
- Long operational lifespan under repeated use
Technical Specifications
| Feature | Specification |
|---|---|
| Model | SV-164-1C25 |
| Brand | SVGO |
| Contact Type | SPDT (COM / NO / NC) |
| Rated Voltage | 250VAC |
| Rated Current | 3–16A |
| Actuator Type | Long Lever |
| Lever Material | Stainless Steel |
| Housing | High-strength insulating plastic |
| Mounting | Screw / Panel Mount |
Mechanical Details
- Long stainless steel lever provides extended reach and smooth operation
- Designed for low-force activation and precise triggering
- Durable structure suitable for continuous mechanical use
- Compact housing for easy installation
Pin Configuration
- COM (Common): Main terminal
- NO (Normally Open): Closes when pressed
- NC (Normally Closed): Opens when pressed
Applications
- CNC and industrial machines
- Limit and position detection systems
- Automation equipment
- Door and safety switches
- Robotics and DIY projects
