Product Description

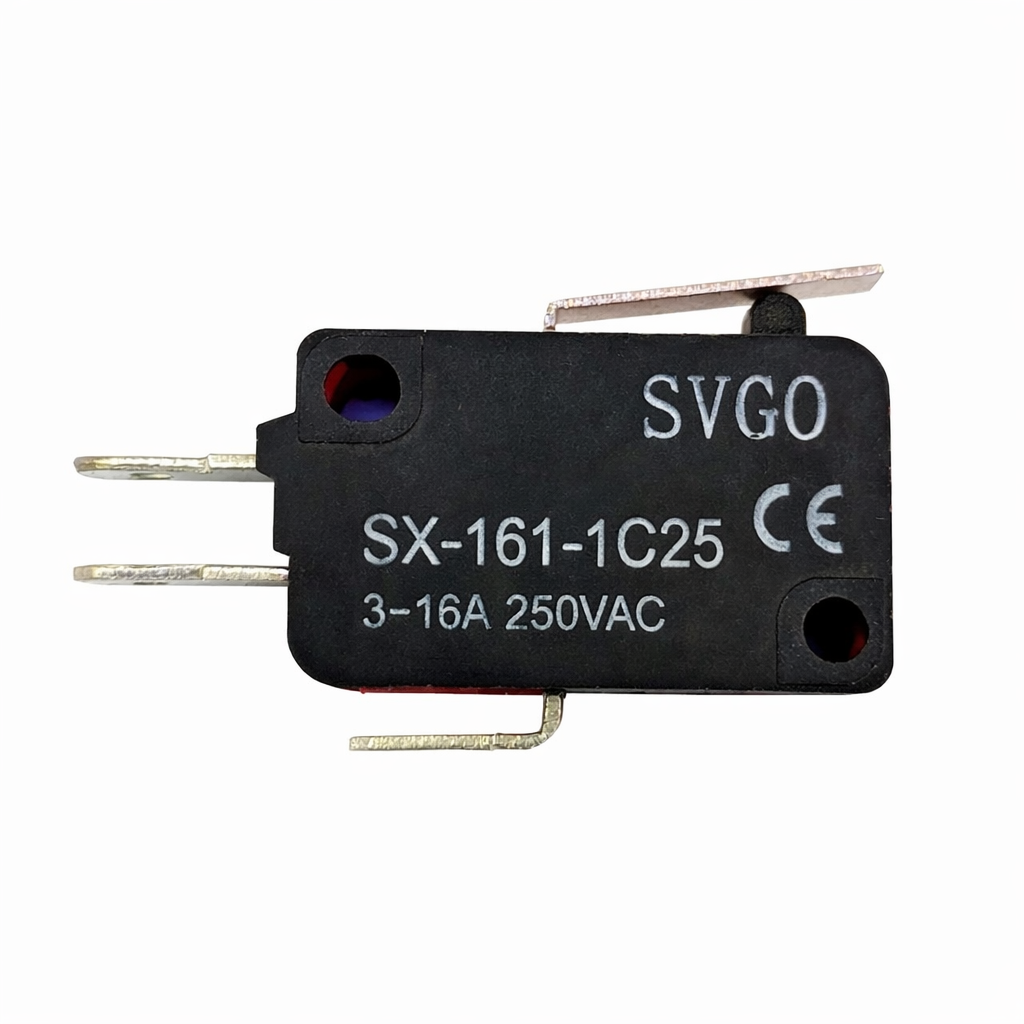

The S-161-1C25 Micro Limit Switch is a compact and reliable snap-action switch designed for precise position detection and control applications. Featuring a durable lever actuator and high electrical rating, this switch is ideal for industrial, automation, and DIY electronics projects.
Its robust construction ensures long operational life and stable performance under repeated mechanical use. Commonly used in printers, CNC machines, 3D printers, and safety systems.
Technical Specifications
- Model: SX-161-1C25
- Type: Micro Limit Switch (Snap Action)
- Rated Current: 3–16A
- Rated Voltage: 250VAC
- Contact Type: SPDT (COM / NO / NC)
- Actuator Type: Lever Arm
- Mechanical Life: ≥ 1,000,000 cycles
- Electrical Life: ≥ 100,000 cycles
Physical Specifications
- Material: High-quality ABS housing
- Terminals: Metal pins
- Mounting: Dual screw holes
- Color: Black
Pin Configuration
| Pin | Function |
|---|---|
| COM | Common |
| NO | Normally Open |
| NC | Normally Closed |
Features
✔ High durability and long lifespan
✔ Fast snap-action response
✔ Stable and reliable performance
✔ Compact size – easy to install
✔ Suitable for high current applications
Applications
- Industrial automation
- 3D printers & CNC machines
- Door safety systems
- Limit detection
- Home appliances
- Robotics
Packing Information
-
Package Includes:
- 1 × Micro Limit Switch
- Packing Type: Polybag / bulk
- Weight: ~ 10–15 g
