General Description

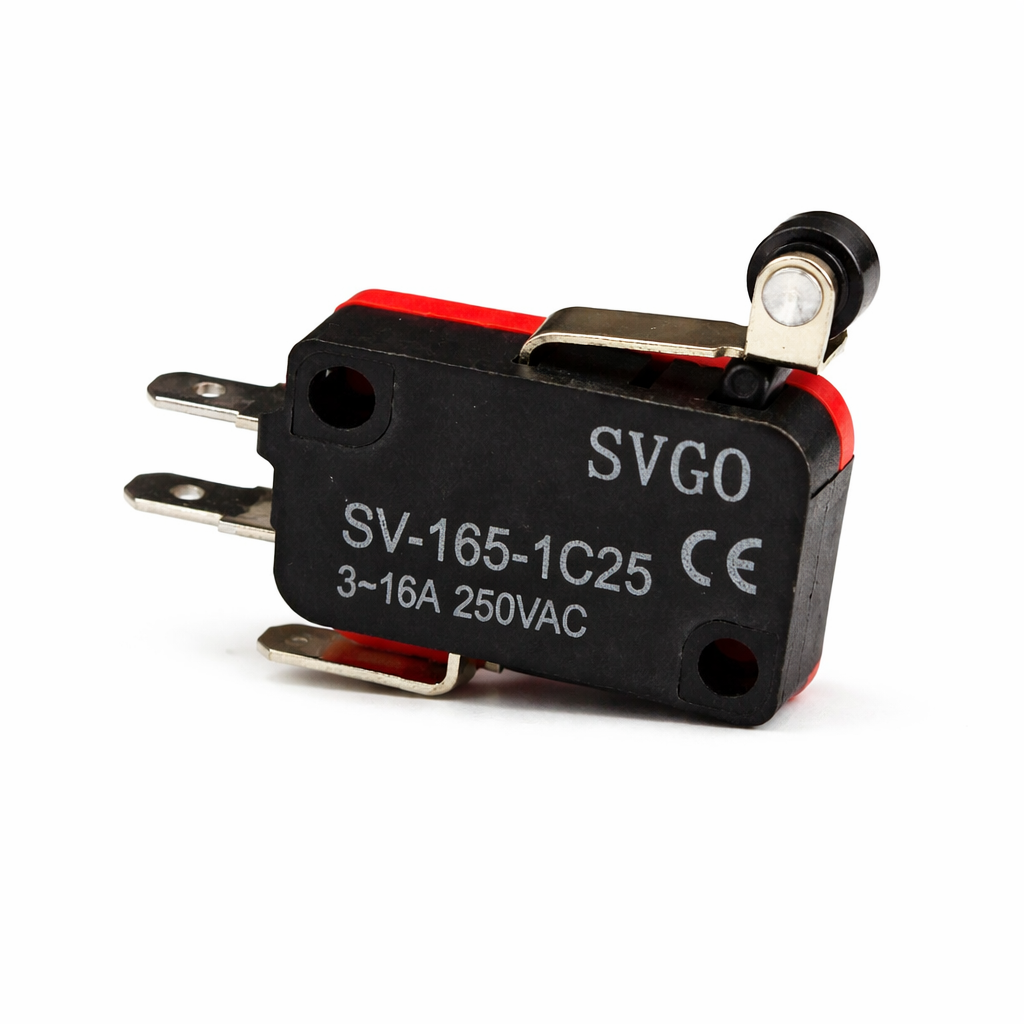

High-performance micro switch designed for precise position detection and control applications. This switch features a durable roller lever actuator that provides smooth operation with minimal friction, making it ideal for continuous and repetitive mechanical movements in industrial and electronic systems.
Key Features
- Compact size for easy integration
- Roller lever for smooth and accurate actuation
- High current handling capability up to 16A
- Fast switching response with high reliability
- Long mechanical and electrical lifespan
- Stable performance under frequent use
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SV-165-1C25 |
| Brand | SVGO |
| Contact Type | SPDT (COM / NO / NC) |
| Rated Voltage | 250VAC |
| Rated Current | 3–16A |
| Actuator Type | Roller Lever |
| Lever Material | Stainless Steel |
| Housing Material | Durable Plastic |
| Mounting Type | Panel / Screw Mount |
Mechanical Details
- Equipped with a metal lever arm and roller wheel for reduced friction
- Designed for precise triggering with low force
- Compact body suitable for tight installation spaces
- Strong terminals for secure electrical connection
Pin Configuration
- COM (Common) → Main terminal
- NO (Normally Open) → Closed when pressed
- NC (Normally Closed) → Open when pressed
Applications
- CNC machines and industrial equipment
- 3D printers and robotics
- Limit detection systems
- Automatic doors and safety systems
- Home appliances and control circuits
