Product Description

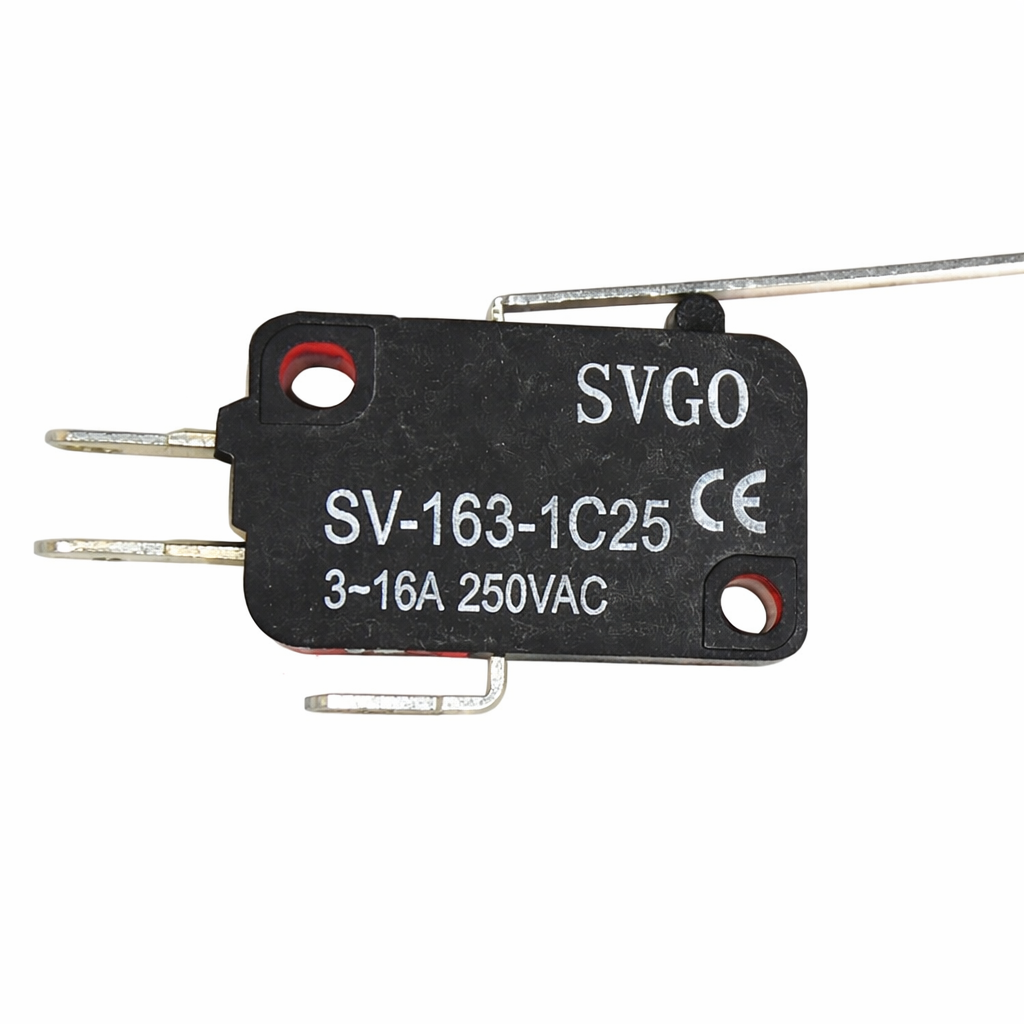

The SV-163-1C25 Micro Limit Switch with long lever arm is a high-performance snap-action switch designed for precise position sensing and mechanical control applications. The extended lever allows smoother actuation and better flexibility in movement detection, making it ideal for automation systems and mechanical limit detection.
Built with durable materials and designed for long life cycles, this switch ensures reliable performance even under continuous operation.
Technical Specifications
- Model: SV-163-1C25
- Type: Micro Limit Switch (Snap Action)
- Rated Current: 3–16A
- Rated Voltage: 250VAC
- Contact Type: SPDT (COM / NO / NC)
- Actuator Type: Long Lever Arm
Mechanical Specifications
- Lever Type: Long metal lever
- Lever Length: ~ 30 – 35 mm (approx.)
- Actuation Force: Low force due to extended lever
- Mechanical Life: ≥ 1,000,000 cycles
- Electrical Life: ≥ 100,000 cycles
Physical Dimensions
- Switch Body Size: ~ 27 × 10 × 15 mm
- Mounting Holes Distance: Standard micro switch spacing
- Weight: ~ 10–15 g
Pin Configuration
| Pin | Function |
|---|---|
| COM | Common |
| NO | Normally Open |
| NC | Normally Closed |
Features
✔ Long lever for smooth and sensitive actuation
✔ High current capacity up to 16A
✔ Fast snap-action switching
✔ Long mechanical lifespan
✔ Easy installation with mounting holes
Applications
- CNC machines
- 3D printers
- Industrial automation
- Limit detection systems
- Safety interlock systems
- Robotics
Packing Information
-
Package Includes:
- 1 × Micro Limit Switch (Long Lever)
- Packing Type: Polybag / bulk
- Carton Quantity: حسب الطلب
- Weight: ~ 10–15 g
Important Notes
❗ Lever length is approximate and may vary slightly by batch
❗ Ensure correct wiring (COM / NO / NC)
❗ Suitable for AC loads up to 250V
