The AD8232 Heart rate (Pulse) Sensor is a cost-effective board used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG or Electrocardiogram and output as an analog reading. ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op amp to help obtain a clear signal from the PR and QT Intervals easily.
Features
- Voltage: DC3.3V Power.
- Analog Output.
- Low power control.
- LED indication.
- The electrode interfaces 3.5mm

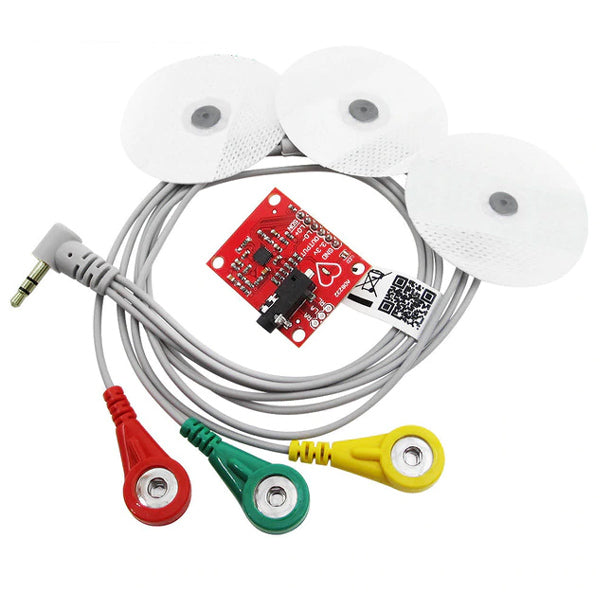

Package Includes :
- 1 x ECG Sensor
- 1 x ECG Cable
- 3 x Disposable Surface Electrode
AD8232 Heart Rate Sensor datasheet
