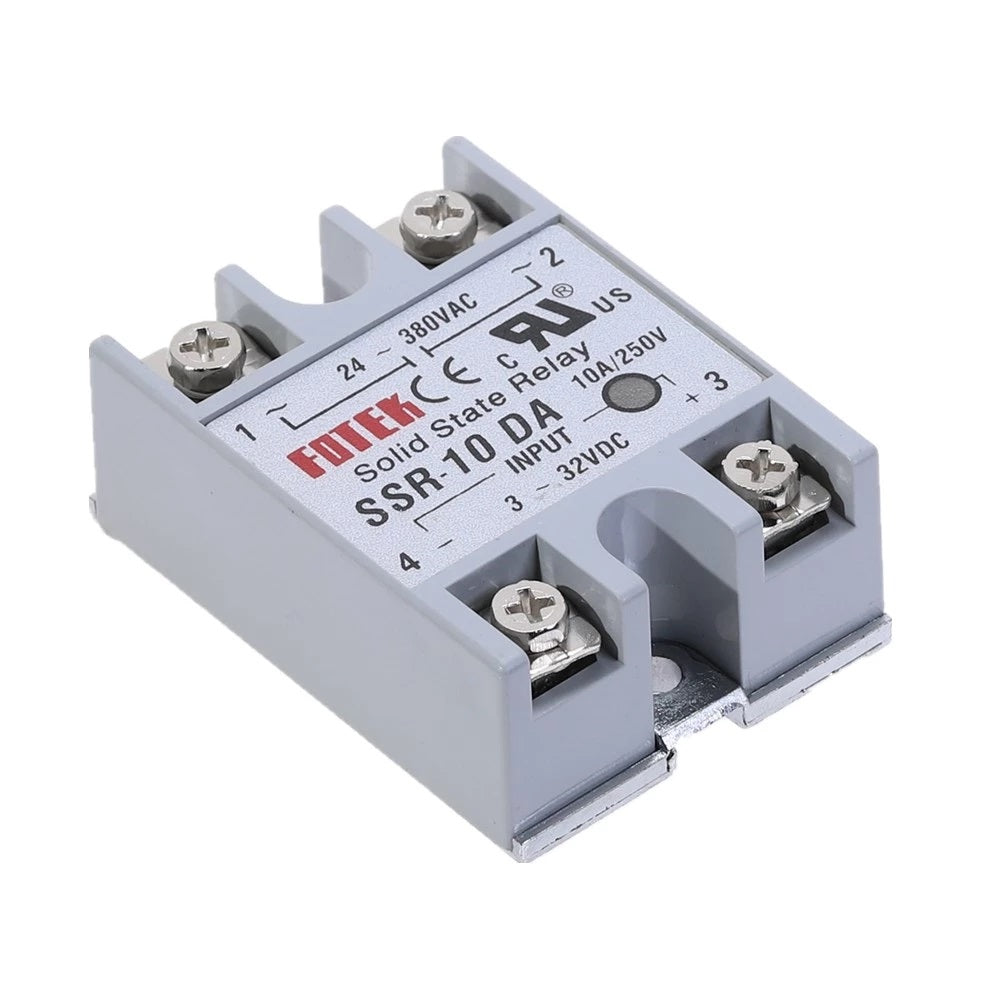

This SSR (Solid State Relay) can switch current loads of up to 10A with a 4-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.
- Input Voltage: 4-32 VDC
- Output Voltage: 24-380 VDC
- Turn off Voltage: < 3.5 VDC
- Triger Current: 12 Ma max
- Leakage Current: 5 Ma max
- Response Time: 8.3 ms
- Operating Temperature: -40 - 80 C
