USBASP AVR Programmer

USBASP AVR Programmer

LE 145.00

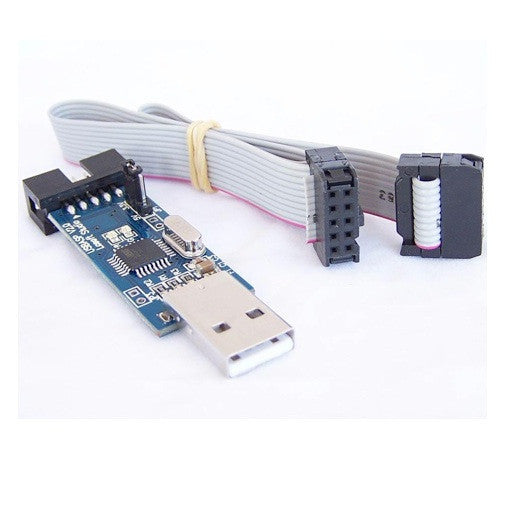

USBasp is a USB in-circuit programmer for Atmel AVR controllers. It is based on Thomas Fischl's USBasp design project. The USB interface is achieved by using an atmega8 processor and the rest is done in firmware.

The firmware are free to load from USB in-circuit programmer for Atmel AVR controllers. It is based on Thomas Fischl's website. You can download Windows drivers from here, so you can use them on Windows Vista and above without any issues. The driver will work on both 32 and 64 bit platforms. For Linux and Mac OS X no driver is required, just use AVRdude and specify the correct port.

The AVR programmer will work with a wide variety of Atmel AVR microcontrollers including the Atmega8a and Atmega168a. A list is available of supported microcontrollers are shown below.


  • Allows you to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits
  • Support for Windows, Mac OS X and Linux
  • 5 KB/sec maximum write speed
  • Software controlled SCK option to support targets with low clock speed (< 1.5MHz)
  • 10 pin ISP interface (conforms to standard ISP 10-pin pinout)

Working Software

Kit Includes:

  • 1x USBasp programmer
  • 1x 10 pin ISP cable

Supported Microcontrollers:

ATmega8 ATmega8A ATmega48 ATmega48A ATmega48P ATmega48PA ATmega88
ATmega88A ATmega88P ATmega88PA ATmega168 ATmega168A ATmega168P ATmega168PA
ATmega328 ATmega328P ATmega103 ATmega128 ATmega128P ATmega1280 ATmega1281
ATmega16 ATmega16A ATmega161 ATmega162 ATmega163 ATmega164 ATmega164A
ATmega164P ATmega164PA ATmega169 ATmega169A ATmega169P ATmega169PA ATmega2560
ATmega2561 ATmega32 ATmega32A ATmega324 ATmega324A ATmega324P ATmega324PA
ATmega329 ATmega329A ATmega329P ATmega329PA ATmega3290 ATmega3290A ATmega3290P
ATmega64 ATmega64A ATmega640 ATmega644 ATmega644A ATmega644P ATmega644PA
ATmega649 ATmega649A ATmega649P ATmega6490 ATtiny12 ATtiny13 ATtiny13A
ATtiny15 ATtiny25 ATtiny26 ATtiny85 ATtiny2313 ATtiny2313A

USBASP AVR programmer detailed tutorial

AVR programmer USBASP user guide

AVR programmer windows drivers




Sold Out
