Conventional NFC Tags don’t work when applied to metal surfaces. Because NFC tags work by electromagnetic induction, metal can easily interfere with their operation.
On-metal or Anti-metal NFC Tags are specially manufactured with a protective layer made of ferrite, so that they can work also if stacked directly to a metal surface.

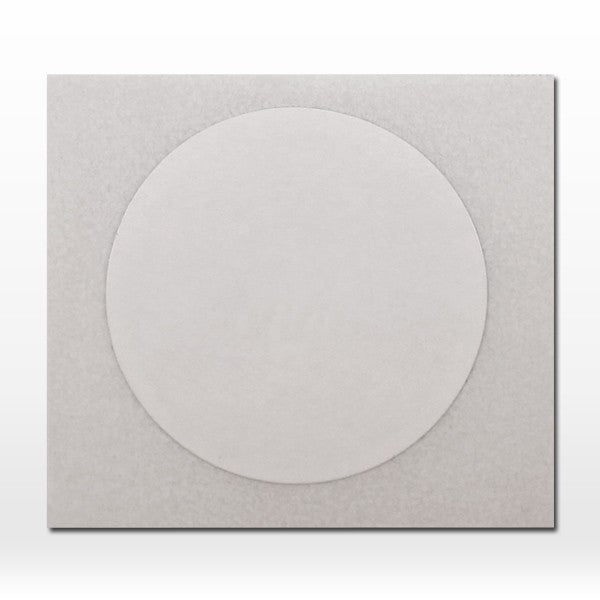

NFC Tag (Sticker) Features
- Chip: NTAG213 (compatible with all NFC enabled smart phones)
- Anti-metal nfc
- Frequency: 13.56 MHz (High Frequency)
- Size: round with diameter 25mm (1 inch)
- Material: paper
- 3M strong self-sdhesive backing
- Color: white
- Reading time: 1 - 2 ms
- User memory: 144 Character
- Protocol: ISO/IEC 14443A & 18000-3
- Function: read and write
- Read and write times:> 100,000 times
- Reading distance: 20 mm
- Data retention:> 10 years
- Designed for use on metal surfaces
Applications OF NFC
- Payments (banking)
- Transportation (Ticket)
- Access control (hotels, companies, ...etc)
- Events (exhibits, important events, invitation cards)
- Bussines cards
- Hospitals (Patients data)
- Farms (Animal and planets identification)
- Show Rooms (items data)
- Shipping (product shipping history and specifications).
