433Mhz Wireless Remote 4 channel relay   AC 85V ~ 250V

433Mhz Wireless Remote 4 channel relay AC 85V ~ 250V

LE 800.00



 Wireless Remote Control Switch AC 85V ~ 220V, 12VDC

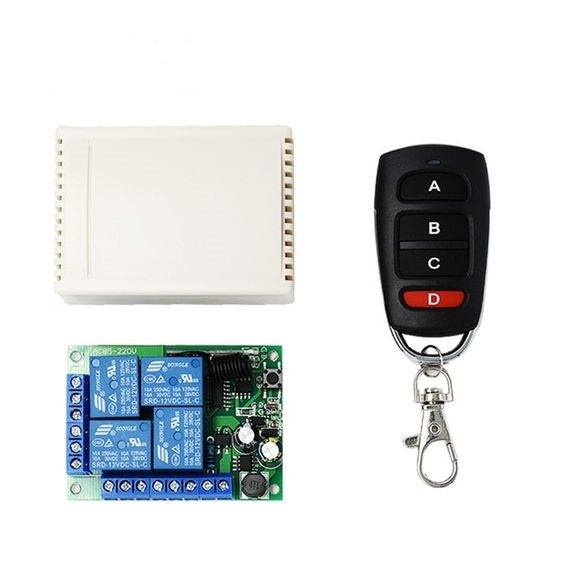

  (4 Channel Relay ) Receiver Module and RF Control 433Mhz

include :

1- 4 channel relay module

2- one remote control transmitter 433 Mhz




Technical Data:

Input Power: AC 85V-250V       DC  12V -36 V

RF Frequency: 433M

Transmitting distance: 50 -100 m ( open space)

Decoding mode: MCU software decoding

Remote storage: 16 pcs

Support remote type: Learning code, Fixed code

Working mode: Momentary, Toggle,

Wiring type: fixed terminal

Dimension of PCB: 35*65 mm


Transmitter (remote control) technical parameters:

Model: KT01-4
Operating frequency: 434 MHz
Material: PVC
Button: 4 buttons
Size: 50 mm × 30 mm × 9 mm
Transmission power: + 13dbm
Frequency wind resistance: ±0.2MHz
Modulation method: ASK (AM)
Coding type: learning code 1527 fixed code (2262)
Transmission distance: 15-80 meters
Weight: 35 g

OUTPUT mode
Connect the COM to the Power Supply by AC220V, the Output pin will create AC220V Signal. Please check below diagram for better understanding.
Three programming methods

1- First clear the raw data in the receiver. Press and hold the “learn” button on the receiver 8 times and the LED indicator will continue to flash.
2-The code will be cleared. (If the LED bulb on the receiver is not flashing, check the power connection status and try more correct methods)
After clearing the code, the entire remote will no longer be valid.

One: Instant (instantaneous) mode, the operation is as follows:
1. Press the “learn” button on the receiver once to enter the switch configuration mode.
Wait for the LED to illuminate.
2. Then press any button on the remote control, such as the “A” button, the LED bulb on the receiver will flash and then go out.
Learning coding is complete.
3. Press and hold the “A” button on the remote control, the relay will open (start working), release the “A” button on the remote control, and the relay will be turned off (stop working).
The three keys of B.C.D operate in the same way.

Two: self-lock mode: The operation steps are as follows:
1. Press the “Learning” button on the receiver twice to enter the switch setting mode.
Wait for the LED to light up,
2. Press and hold any button on the remote control, such as the “A” button, the LED bulb on the receiver will flash and then go out.
Learning coding is complete.
3. Press and hold the “A” button on the remote control, the connection relay turns on (starts work), then press the “A” button on the remote control again, the relay is turned off. (stop working)
B. The three keys of C.D operate in the same way.

Three: Mutual lock mode: The operation is as follows:
1. Press the Learn button on the receiver three times. Enter the switch setting mode.
Wait for the LED to illuminate.
2. Then press any button on the remote control, such as the “A” button, the LED bulb on the receiver will flash and then go out.
Learning coding is complete.
3. Press the “A” button on the remote control, the relay is turned on (starts work), then press the “B” button on the remote control, the relay turns on (starts work), the first channel “A” is turned off (stops working) ), another relay is turned on. Press "C" to turn "B", press "D" to close "C".
Convert to each other.
*
