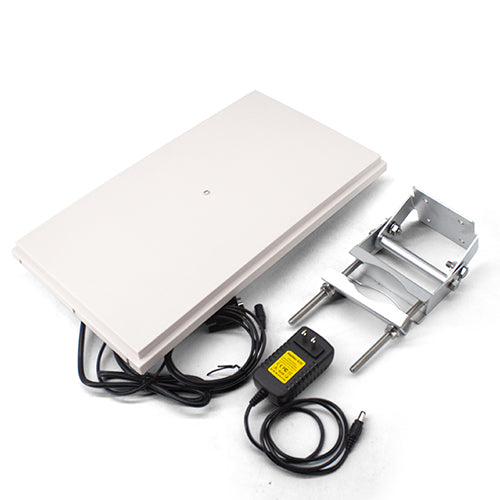

The R16-12DB is an integrated UHF reader with multi-protocol compatibility, fast read rate, multi-tag reading, and waterproof design. It can be widely used in various RFID systems.
| model | R16-10DB |
| Supported protocols | ISO18000-6C（EPC GEN2） |
| working frequency | ISM 902～928MHz and ISM |
| Operation mode | FHSS |
| RF power | 0~30dBm，Software Programmable |
| Reading speed | Single card average reading is 64bits, less than 6ms, Software Programmable |
| Work mode | reading Active and reading passive, Software Programmable |
| Communication Ports | N:Wiegand26/34/98, RS232/RS485 ,USB E:Wiegand26/34/98, RS232/RS485,TCP ,USB |
| Input interface | 1 way trigger input |
| Reading range | 20m to 35m |
| Status indicators | buzzer |
| Antenna | 12dbi circular antenna |
| Power supply | DC＋9V |
| Size | 440mm×420mm×56mm |
| Weight | 1.55 Kg（Package:3kg） |
| Operation Temp | -20℃~+70℃ |
