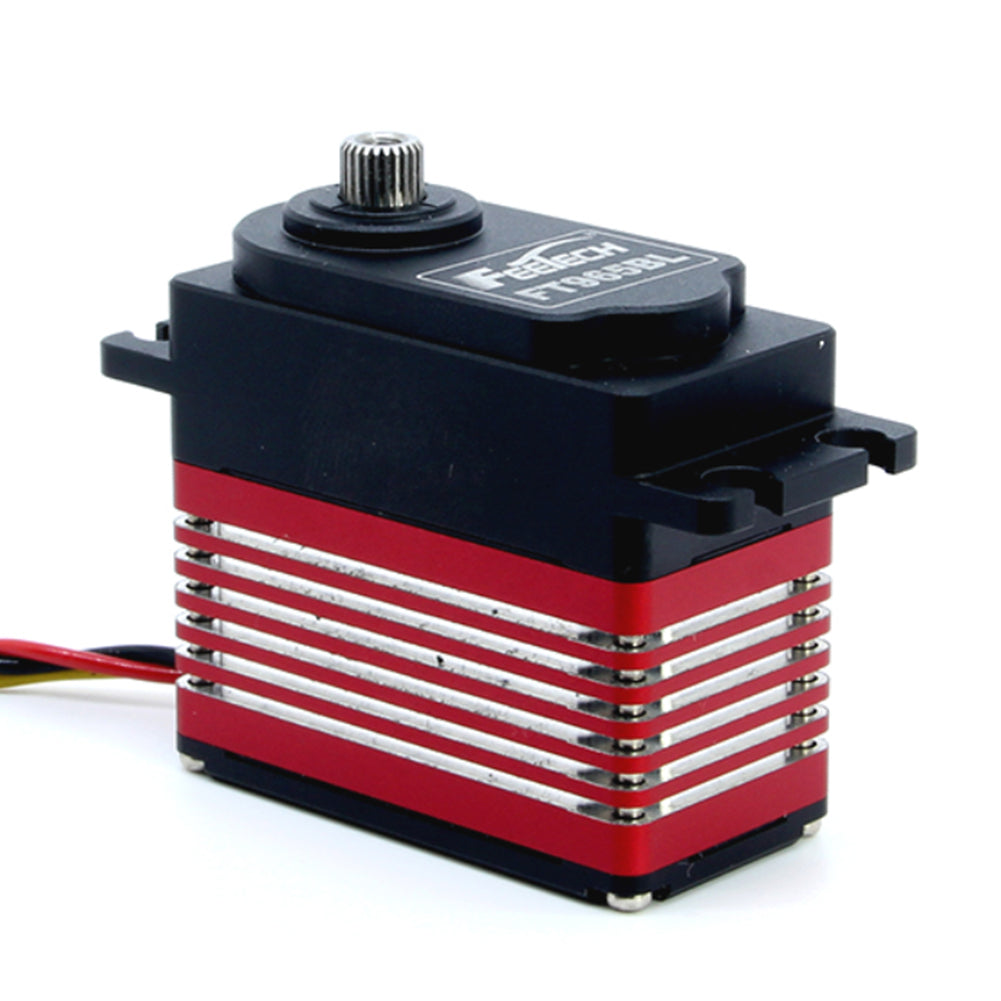

This is brushless a metal gear high torque servo motor. Metal gears allow increase servo reliability at high loads, making servo suitable for more critical applications. Unlike dc motors, with servo motors you can position the motor shaft at a specific position (angle) using control signal. The motor shaft will hold at this position as long as the control signal not changed. This is digital servo very useful for controlling robot arms , RC CAR , unmanned airplanes control surface or any object that you want it to move at certain angle and stay at its new position.
| Operating Voltage | 6V - 8.4V |
| No Load Speed | 0.149sec/60°(67RPM) |
| Running Current ( no load)： | 400mA |
| Stall Torque (at locked)： | 60kg.cm |
| Stall Current (at locked)： | 5.8A |
| Rated Torque： | 20kg.cm |
| Rated Current： | 1900mA |
| Kt constant： | 9.8kg.cm/A |
| Size | 43.7X22X40 mm |
| Case material： | Aluminum |
| Gear material ： | Steel |
| Bearing type ： | Ball bearings |
| Angle Sensor Type | 12Bits Magnetic Coding |
| Angle ： | 180 |
| Connector and Cable： | Material Teflon Length：35CM |
| Pin Definition： | 1 ：Signal 2 ：Vcc 3 ：GND |
| The Weight ： | 95 g |
| Horn Type： | 25T/5.9mm |
| Gear Ratio： | 1/579 |
| Back Lash： | ≦0.5° |
| The rocker phantom： | 0° |
| The rocker screw： | M3X6 |
| Motor： | Brushless Motor |
| Control System Type ： | Digital comparator |
| Operating Travel： | 180°± 5°(at 500→2500μsec) |
| Pulse Width Range： | 500→2500 μsec |
| Rotating Direction： |
Clockwise(在1500→2000 μsec) |
中立位置 |
1500 μsec |
|
死区宽度 |
≤4 μsec |
Package list:
1 x Servo + Metal horn
