Description

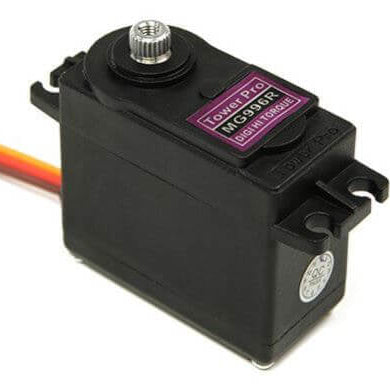

MG996R Digital servo is an upgrade version of MG995 servo 360 degree . The new PCB and IC control system, which makes it much more accurate. The internal gear and motor are also upgraded to improve the dead band and centering.
It is a great choice for 1/10 buggy and airplane helicopter, RC cars from 10 to 6th scale Truggy and monster and many RC model.

MG996R Digital servo specifications:
– Weight: 55g
– Dimensions: 40.7×19.7×42.9mm
– Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
– Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
– Operating voltage: 4.8-6.6v
– Gear Type: Metal gear
– Temperature range: 0 ~ 55 ° C
– Deadband: 1us
– Servo wire length: 32 cm
– Current draw at idle 10mA
– No load operating current draw 170mA
– Stall current draw 1400mA
– Servo Plug: JR (fits JR and Futaba)

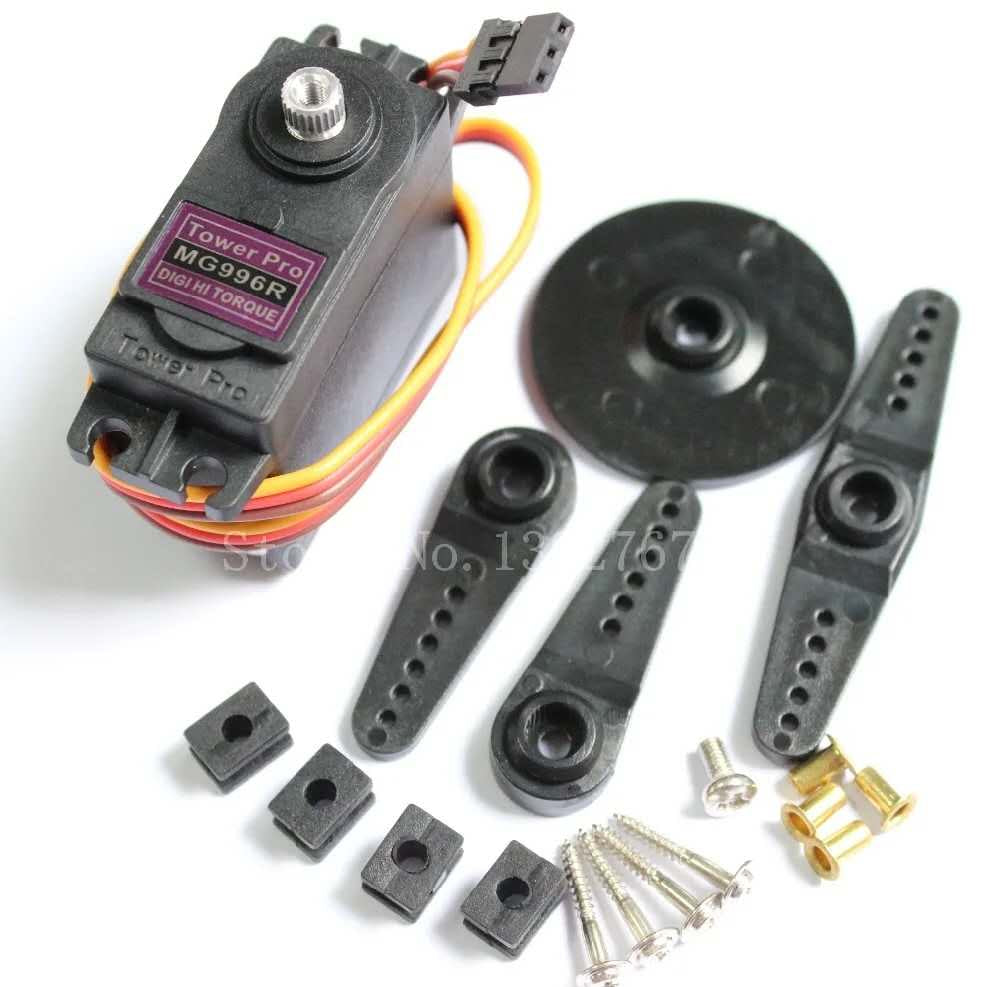

– Servo arms and screws included
– Universal S-type connector that fits most receivers including Futaba, JR, Hitec,

Original Towerpro servo
