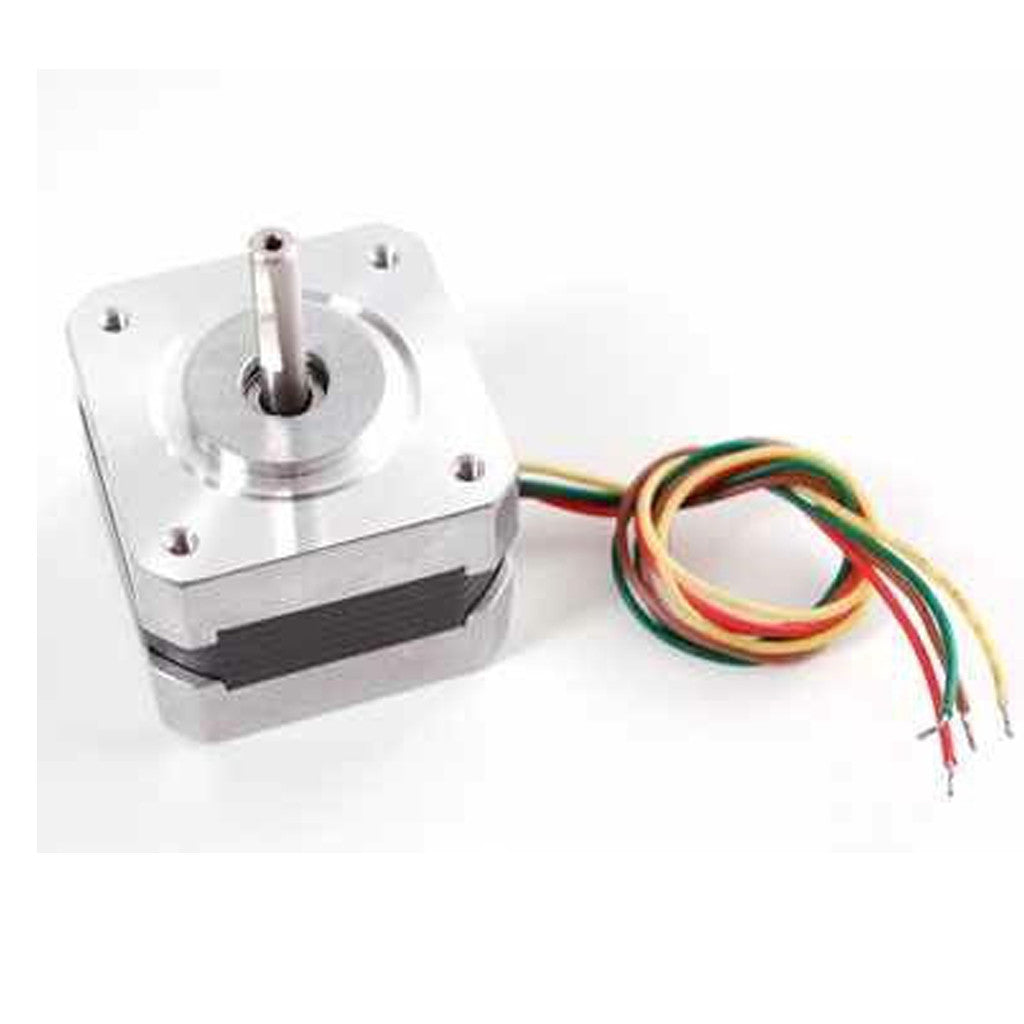

Stepper Motor (NEMA 17 - 3 Kg.cm)

Stepper Motor (NEMA 17 - 3 Kg.cm)

LE 420.00


This 4-wire bipolar stepper has 1.8° per step for smooth motion and 3 kg.cm holding torque. The motor was specified to have a max current of 350mA so that it could be driven easily with

Some nice details include a ready-to-go cable and a machined drive shaft (so you can easily attach items).

  • 200 steps per revolution, 1.8 degrees
  • Bipolar stepper
  • 4-wire, 12 inch leads
  • 42mm/1.65" square body
  • 31mm/1.22" square mounting holes, 3mm metric screws (M3)
  • 5mm diameter drive shaft, 24mm long, with a machined flat
  • 12V rated voltage (you can drive it at a lower voltage, but the torque will drop)
  • Max current:  350mA
  • 30 N*cm, 3 Kg*cm holding torque per phase
  • 35 ohms per winding

For stepper motor datasheet​, click here
