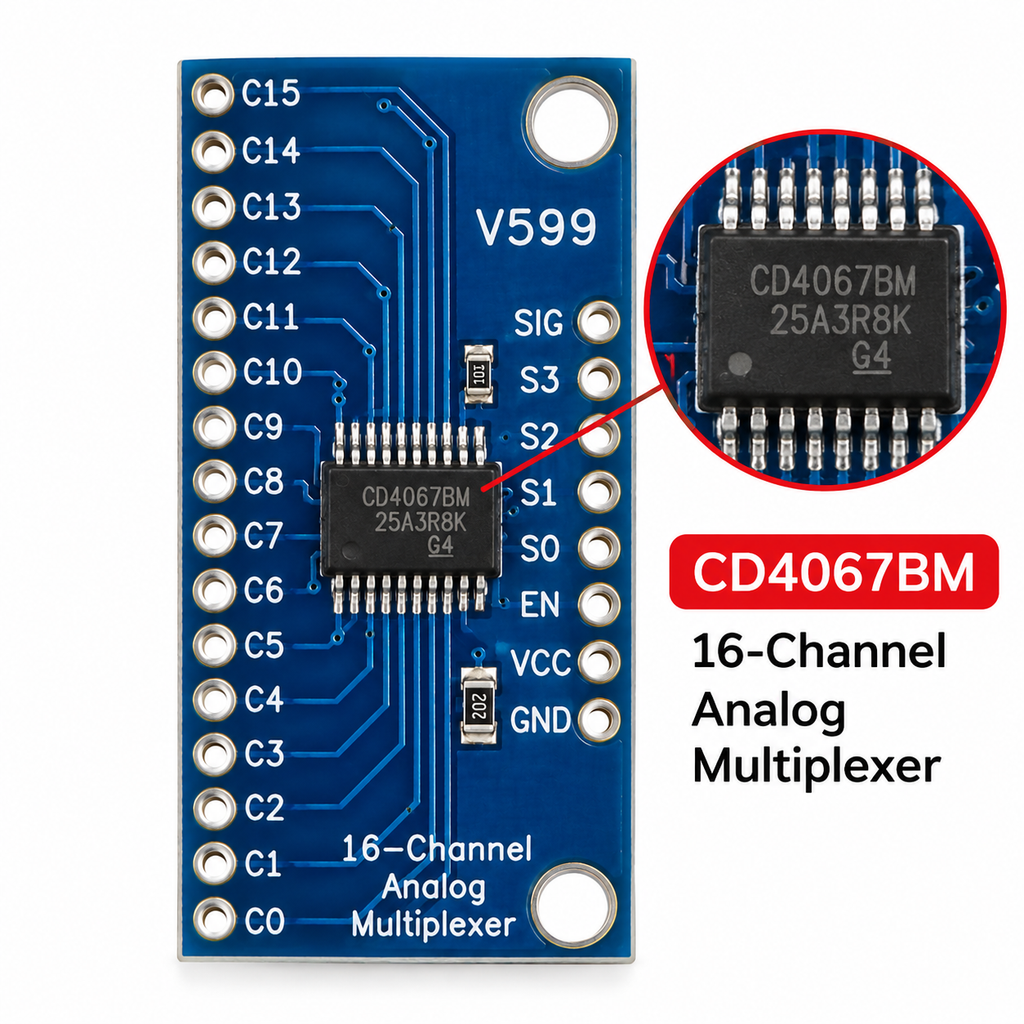

CD4067BM 16-Channel Analog Multiplexer Module

Product Name:
CD4067BM 16-Channel Analog Multiplexer / Demultiplexer Module

IC: Texas Instruments CD4067BM
Function: 16:1 Analog Multiplexer / Demultiplexer
Channels: 16
Package: 24-Pin SOIC
Control Inputs: S0, S1, S2, S3
Enable: EN
Common Signal: SIG
Supply Voltage: 3–18 V recommended operating range for the CD4067B family.
Operating Temperature: −55°C to +125°C

Description

The CD4067BM 16-Channel Analog Multiplexer Module provides a convenient way to connect up to 16 analog or digital signal channels to a single common signal line.

The module uses the CD4067BM CMOS analog multiplexer, which contains 16 independently selectable analog switches. Four binary control inputs (S0, S1, S2 and S3) determine which channel, from C0 to C15, is connected to the common SIG terminal.

An EN input allows all channels to be disabled when required.

Pinout

Key Features

• 16 independently selectable channels
• 16:1 analog multiplexer
• Can also operate as a demultiplexer
• 4-bit binary channel selection
• CMOS technology
• Wide supply-voltage capability
• Suitable for analog and digital signals
• Compact breakout-board design
• Compatible with Arduino, ESP32, STM32 and other microcontrollers, subject to signal-voltage compatibility

Important Electrical Data

For the CD4067B family, TI specifies a typical 125 Ω ON resistance under a 15-V supply condition and a typical 14 MHz bandwidth. The device has very low OFF-state leakage; exact performance depends on supply voltage, signal level and operating conditions.

Note: CD4067BM itself is now listed by Texas Instruments as obsolete, with CD4067BM96 listed as the replacement.

Applications

• Analog sensor expansion
• ADC input expansion
• Arduino projects
• ESP32 projects
• STM32 projects
• Robotics
• Data acquisition
• Industrial control
• Sensor multiplexing
• Audio signal routing
• Analog signal switching
• Digital signal multiplexing
