ESP32-S3-CAM N16R8 Wi-Fi & Bluetooth Camera Development Board – 16MB Flash, 8MB PSRAM

Product Description

The ESP32-S3-CAM N16R8 is a compact camera development board based on the ESP32-S3, designed for IoT, robotics, smart cameras, image capture, remote monitoring and embedded vision applications.

The board combines a powerful dual-core ESP32-S3 processor, integrated 2.4 GHz Wi-Fi and Bluetooth Low Energy, camera interface, microSD/TF card storage and programmable GPIO in a compact development platform.

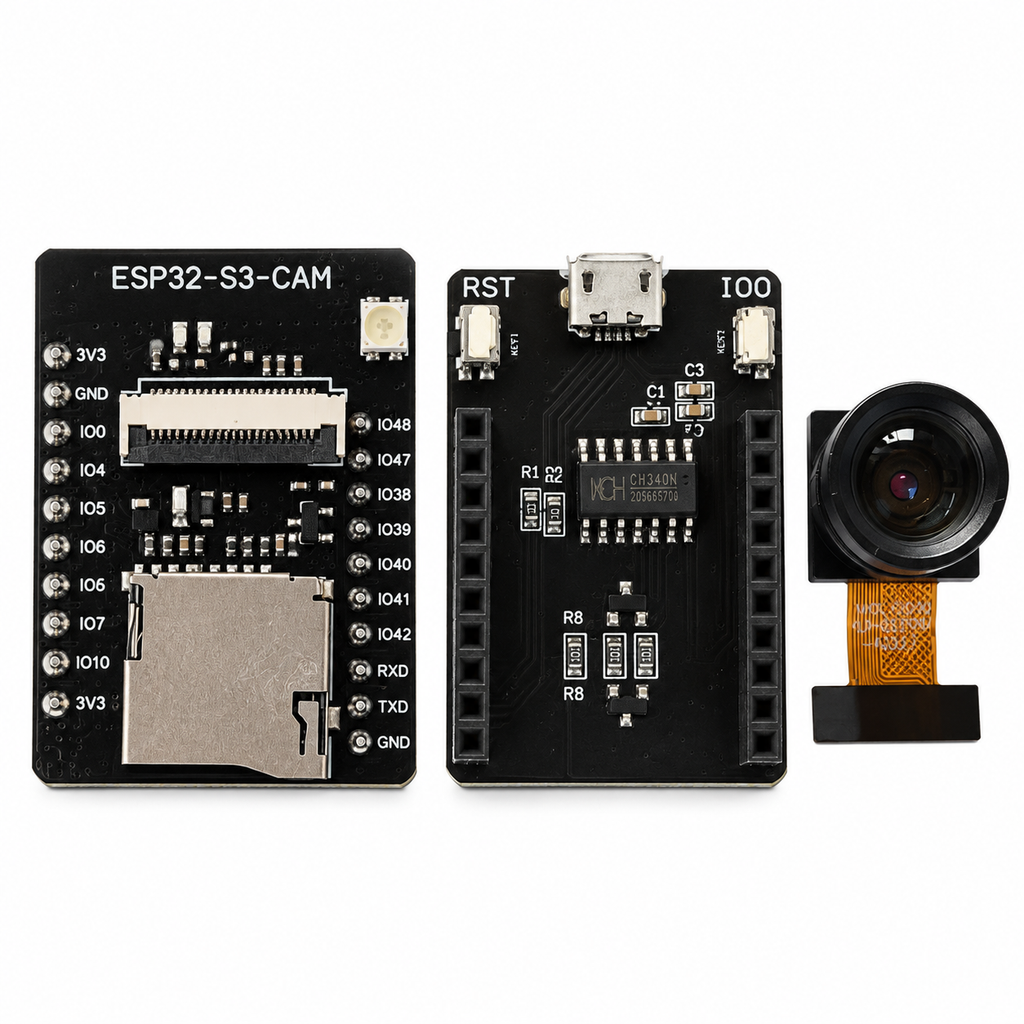

The version shown in the supplied photos includes an ESP32-S3-CAM board, separate camera module and USB/serial programming interface board. The programming board uses a CH340-series USB-to-UART interface.

The ESP32-S3-CAM N16R8 configuration provides 16 MB Flash and 8 MB Octal PSRAM, making it suitable for applications that require additional memory for image buffering and embedded vision workloads.

Key Features

• ESP32-S3 dual-core MCU

• Up to 240 MHz CPU frequency

• 16 MB Flash

• 8 MB Octal PSRAM

• Integrated 2.4 GHz Wi-Fi

• Integrated Bluetooth Low Energy (BLE)

• Dedicated 8-bit DVP camera interface

• Detachable camera module with FPC cable

• MicroSD / TF card slot

• USB programming interface

• CH340 USB-to-UART interface

• BOOT function

• RESET function

• Programmable GPIO pins

• RGB LED / status LED depending on board configuration

• Suitable for Arduino and ESP-IDF development

The documented ESP32-S3-CAM N16R8 design uses an 8-bit DVP camera interface and a 1-bit SDIO interface for the microSD card.

Technical Specifications

The published hardware documentation specifies camera DVP signals including XCLK, PCLK, VSYNC, HREF and D0–D7, with camera control through SCCB/I²C-compatible signals.

Camera Module

Camera Type

Detachable FPC Camera Module with M12-style Lens

The camera supplied with your board is a separate module connected to the ESP32-S3-CAM through the FPC connector.

Important

From the photographs, the exact image sensor marking cannot be reliably confirmed. ESP32-S3-CAM N16R8 boards are available with different camera sensors, including OV2640, OV3660 and OV5640 depending on the supplier/version.

Therefore, for your website I recommend writing:

Camera Sensor: Compatible DVP Camera Module – Sensor Model According to Configuration

  Camera  OV3660

MicroSD / TF Card

The integrated MicroSD/TF card interface allows local storage for:

• Captured photographs

• Video/image data

• Sensor data

• Configuration files

• AI/vision datasets

The documented N16R8 board uses a 1-bit SDIO interface for the TF/microSD card.

Wireless Connectivity

2.4 GHz Wi-Fi

The integrated Wi-Fi allows the board to communicate wirelessly with:

• Smartphones

• Computers

• Local networks

• Web servers

• IoT platforms

• Cloud services

Typical applications include wireless image transmission, web camera servers and remote monitoring.

Bluetooth LE

Bluetooth Low Energy can be used for communication with compatible:

• Smartphones

• Sensors

• Controllers

• IoT devices

• Bluetooth peripherals

USB Programming

The supplied interface board provides USB connectivity for programming and serial communication.

The board shown in your photo contains a CH340-series USB-to-UART converter, allowing convenient connection to a computer for firmware uploading and serial debugging.

GPIO & Interfaces

The ESP32-S3-CAM provides accessible GPIO pins for connecting external hardware.

Supported peripheral functions include:

• GPIO

• UART

• SPI

• I²C

• PWM

• ADC

• USB

• Camera DVP

• SDIO

This makes the board suitable for combining a camera with sensors, motors, displays, RFID modules, GPS modules and other electronics.

Camera Pin Interface

The documented ESP32-S3-CAM design uses:

Applications

Robotics

• Robot vision

• Object detection

• Remote-controlled robots

• Autonomous robots

• Line-following systems

• Mobile robot monitoring

IoT

• Smart IoT cameras

• Wireless sensors

• Smart-home devices

• Remote monitoring

• Connected devices

Security & Monitoring

• Remote surveillance

• Equipment monitoring

• Door monitoring

• Wireless camera systems

• Machine monitoring

AI & Computer Vision

• Image processing

• Object recognition

• Embedded vision

• AI camera projects

• Image-based sensors

Industrial Automation

• Machine inspection

• Product detection

• Remote equipment monitoring

• Visual inspection

• Production-line monitoring

Development Platforms

The ESP32-S3-CAM can be programmed using:

• Arduino IDE

• ESP-IDF

• PlatformIO

• C/C++

• Arduino-compatible libraries

ESP-IDF provides native support for the ESP32-S3 platform and its camera/peripheral architecture.

Package Contents

Based on your supplied product:

1 × ESP32-S3-CAM N16R8 Main Board
1 × Camera  OV3660 Module with FPC Cable

1 × USB/Serial Programmer Interface Board

MicroSD card is not included unless specified separately.
