Here are the full technical specifications for the JGA25-370 DC Gear Motor with a rated voltage of 12V and a speed of 250 RPM , ratio 1:35
This motor is a popular choice for robotics, DIY projects, and industrial automation due to its high-quality metal gearbox and reliable torque.
Technical Specifications
| Feature | Value |
| Model | JGA25-370 |
| Operating Voltage | 12V – 18V DC |
| Rated Voltage | 12V DC |
| No-load Speed | 250 RPM |
| No-load Current | ~50mA |
| Rated Torque | ~4.3 kg.cm |
| Stall Torque | 9 kg.cm |
| Stall Current | ~1.2A |
| Gear Reduction Ratio | 1:34 |
Mechanical Dimensions & Design
-
Motor Diameter: 24.4 mm
-
Gearbox Diameter: 25 mm
-

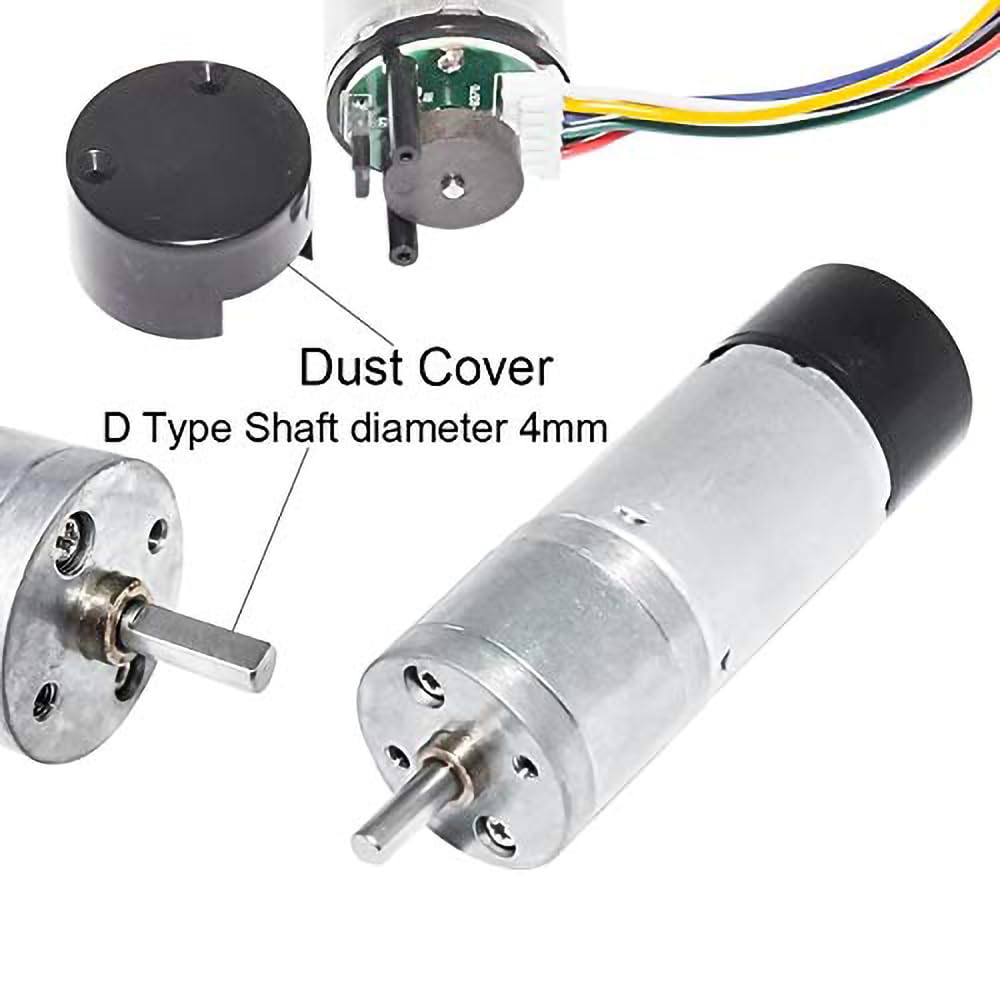

Shaft Diameter: 4 mm (typically a D-shaped shaft to prevent gear slippage)
-
Shaft Length: ~9.5 mm
-
Gear Material: All-metal gears for high durability and wear resistance.
Key Features
-
Direction Control: The direction of rotation can be reversed simply by swapping the positive and negative power leads.
-
Speed Control: Compatible with PWM (Pulse Width Modulation) controllers to adjust the speed smoothly.
-

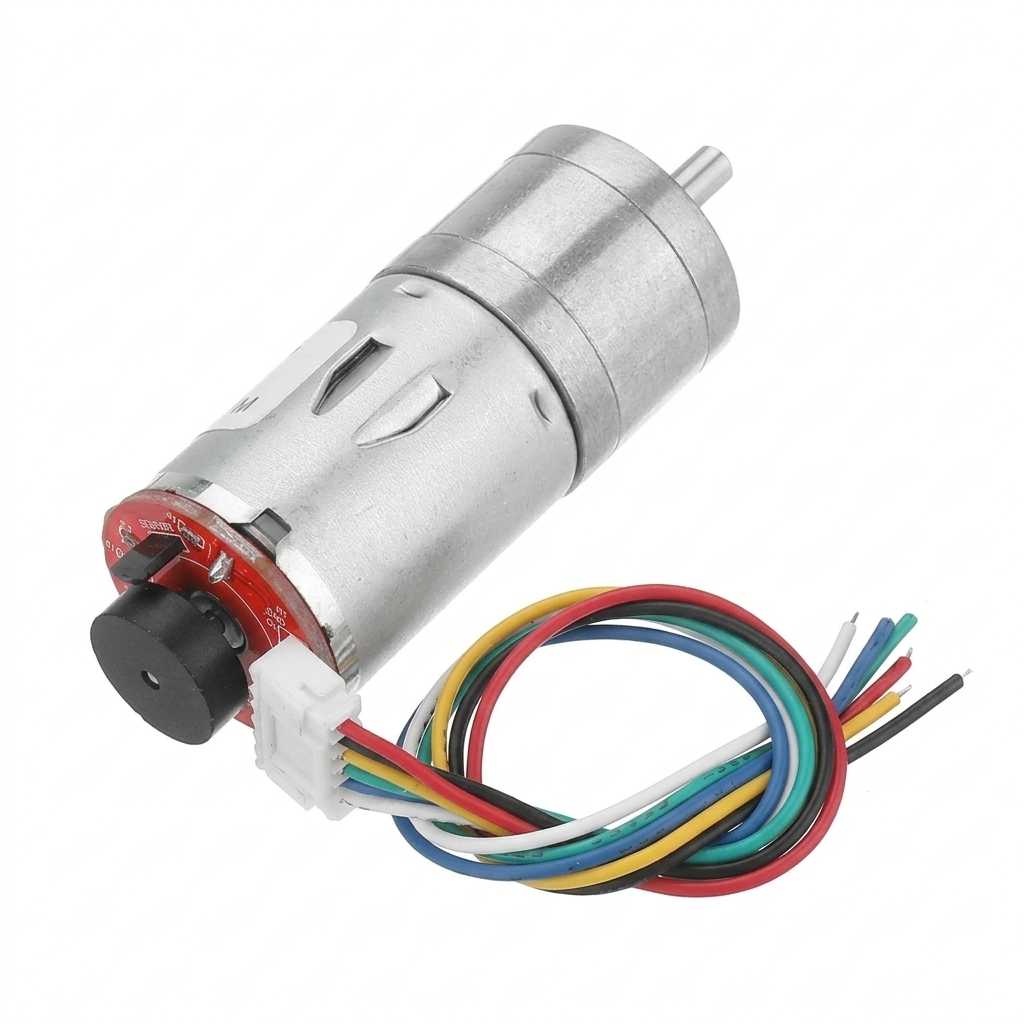

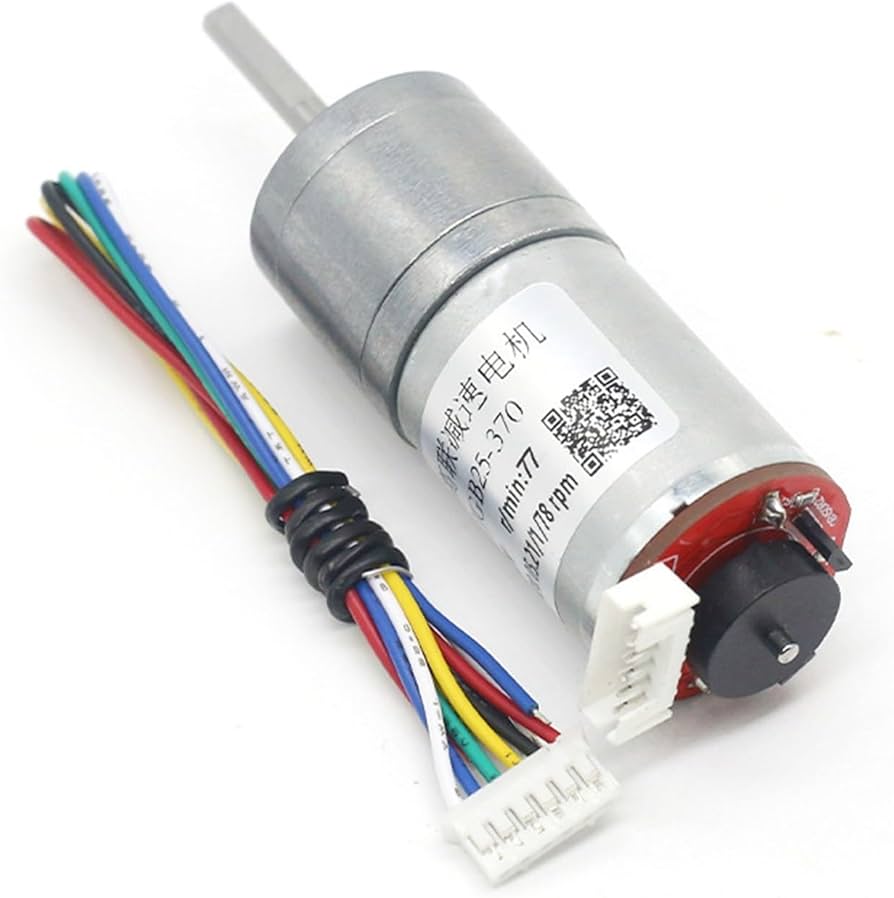

Encoder Option: Some versions of this motor come with a rear-mounted magnetic encoder (usually with a 6-pin connector) for precise position and speed feedback.
Common Use Cases
-
Mobile Robots: Balancing robots, 4WD platforms, and smart cars.
-
Home Automation: Automatic curtains, smart locks, and small valves.
-
Industrial: Vending machines, conveyor belts, and camera gimbals.
