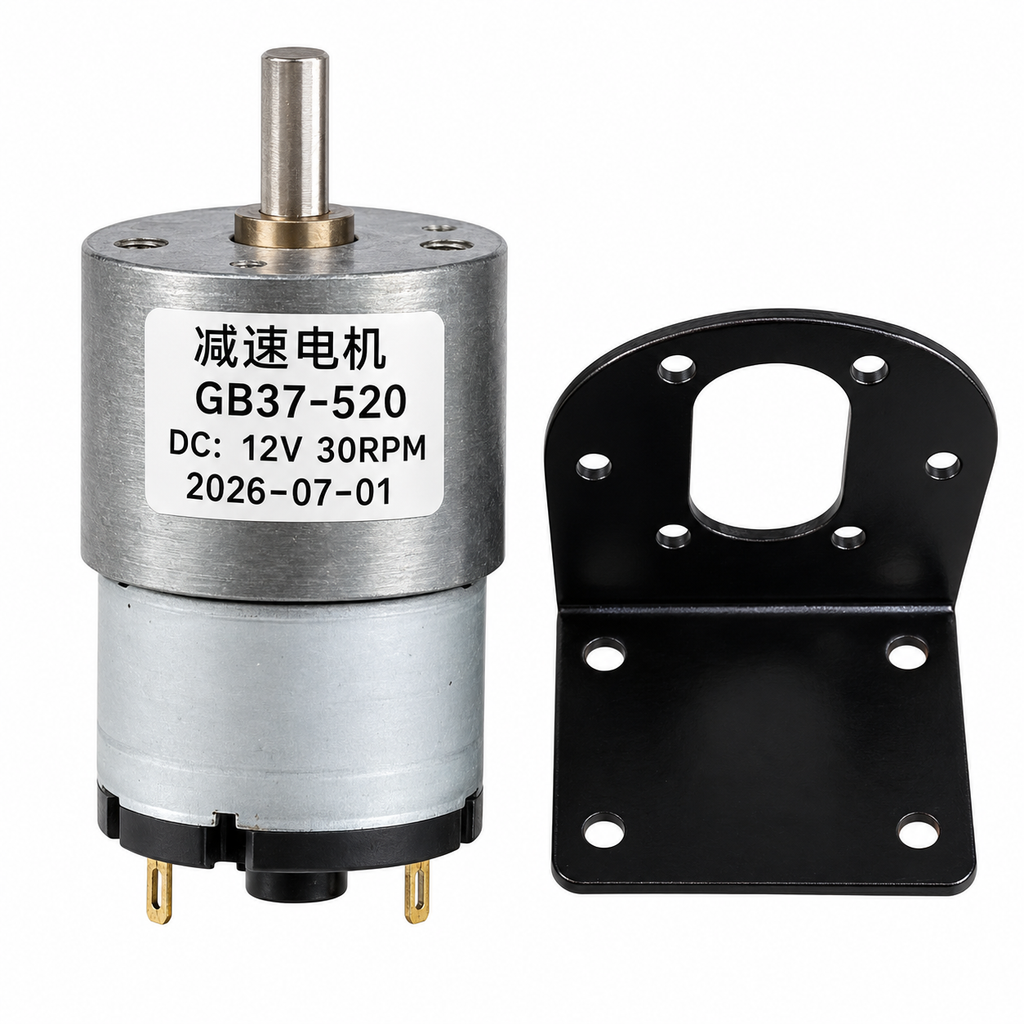

GB37-520 DC Gear Motor – 12V 30RPM, 9 kgf·cm Torque
Product Description
The GB37-520 12V 30RPM DC Gear Motor is a compact, high-torque geared motor designed for robotics, automation, mobile robots, conveyors, actuators, and custom mechanical applications.
It combines a DC motor with a metal reduction gearbox to provide controlled low-speed rotation and increased output torque. The motor operates from 12V DC and delivers an output speed of 30 RPM, making it suitable for applications requiring strong and controlled rotational movement.
Key Features
- Model: GB37-520
- Rated Voltage: 12V DC
- Output Speed: 30 RPM
- Rated Torque: 9 kgf·cm
- Torque: ≈ 0.89 N·m
- Metal reduction gearbox
- Compact cylindrical design
- Metal output shaft
- Forward/reverse rotation
- Mounting bracket suitable for robotic and mechanical assemblies
- Suitable for continuous mechanical drive applications
Technical Specifications
| Specification | Value |
|---|---|
| Model | GB37-520 |
| Motor Type | Brushed DC Gear Motor |
| Rated Voltage | 12V DC |
| Output Speed | 30 RPM |
| Rated Torque | 5 kgf·cm |
| Rated Torque | 0.49 N·m |
| Rated Power | 10 W |
| Gearbox Type | Metal Reduction Gearbox |
| Output Shaft | Metal |
| Rotation Direction | CW / CCW |
| Mounting | Metal Mounting Bracket |
| Application | Robotics & Automation |
Applications
- Robotic vehicles
- Mobile robots
- AGV platforms
- Conveyor systems
- Automated machinery
- Wheel-drive mechanisms
- Small actuators
- Lifting mechanisms
- Automatic doors and mechanisms
- DIY robotics
- Educational robotics
- Industrial automation
Wiring
The motor uses a simple 2-wire DC connection.
Reverse rotation: Simply reverse the polarity of the two motor wires.
Torque Conversion
9 kgf·cm ≈ 0.89 N·m
Package
- 1 × GB37-520 DC Gear Motor
- 1 × Mounting Bracket
