General Description

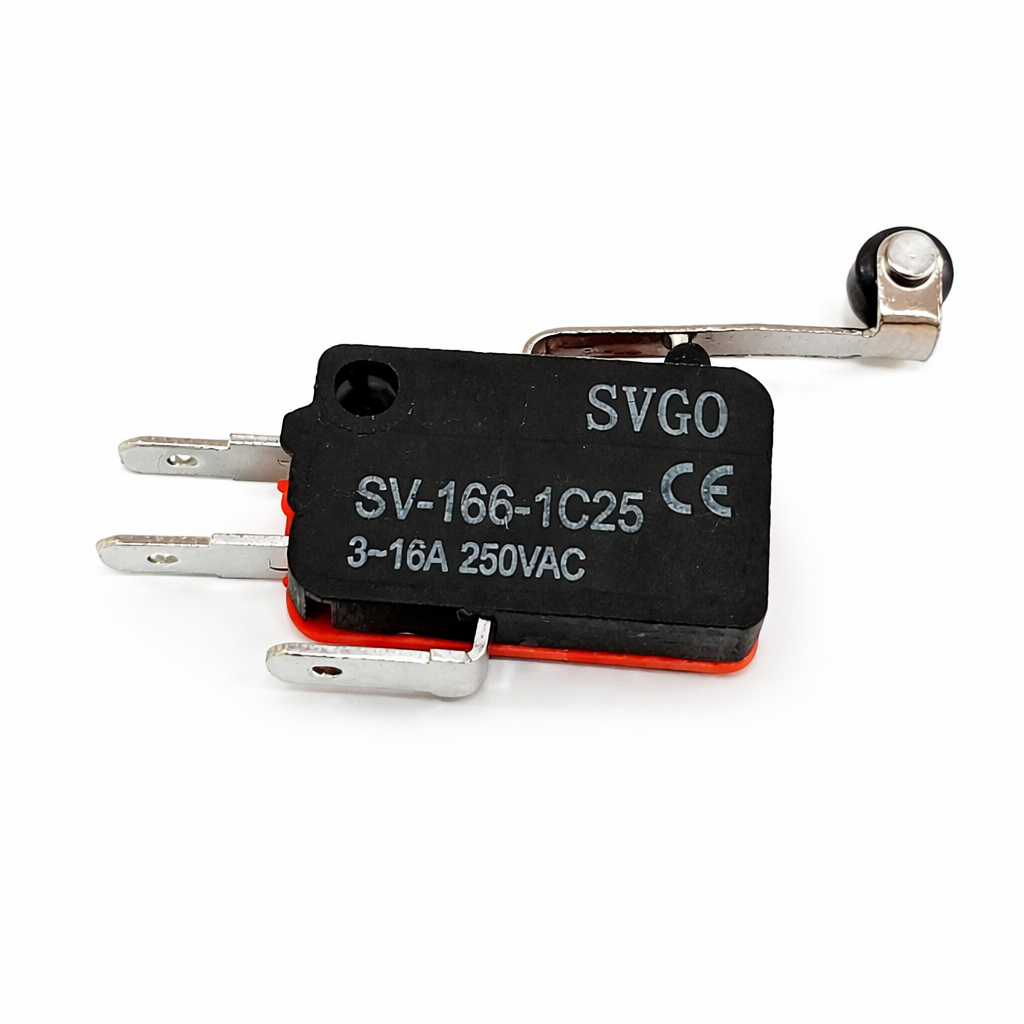

High-quality micro switch from SVGO designed for precise mechanical detection and control applications. It features a flexible metal lever with a roller tip, providing smooth and reliable actuation with minimal friction. Ideal for industrial equipment, automation systems, 3D printers, and limit detection applications.
Key Features
- Compact and durable design
- Roller lever for smooth movement and reduced wear
- High electrical rating up to 16A
- Fast and accurate switching response
- Long mechanical lifespan
- Suitable for AC load control applications
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SV-166-1C25 |
| Brand | SVGO |
| Contact Type | SPDT (COM / NO / NC) |
| Rated Voltage | 250VAC |
| Rated Current | 3–16A |
| Actuator Type | Roller Lever |
| Lever Material | Stainless Steel |
| Housing Material | High-quality plastic |
| Mounting Type | Through-hole / screw mount |
Mechanical Dimensions
| Parameter | Approx. Value |
|---|---|
| Body Length | ~28 mm |
| Body Width | ~16 mm |
| Body Height | ~10 mm |
| Lever Length | ~35–40 mm |
| Roller Diameter | ~5 mm |
| Terminal Pitch | ~5 mm |
Pin Configuration
- COM → Common terminal
- NO (Normally Open) → Connected when pressed
- NC (Normally Closed) → Connected when not pressed
Applications
- Limit switches in CNC machines
- 3D printers and robotics
- Door detection systems
- Industrial automation
- Safety interlock systems
