PCB  Stacking Terminal Block 3pin

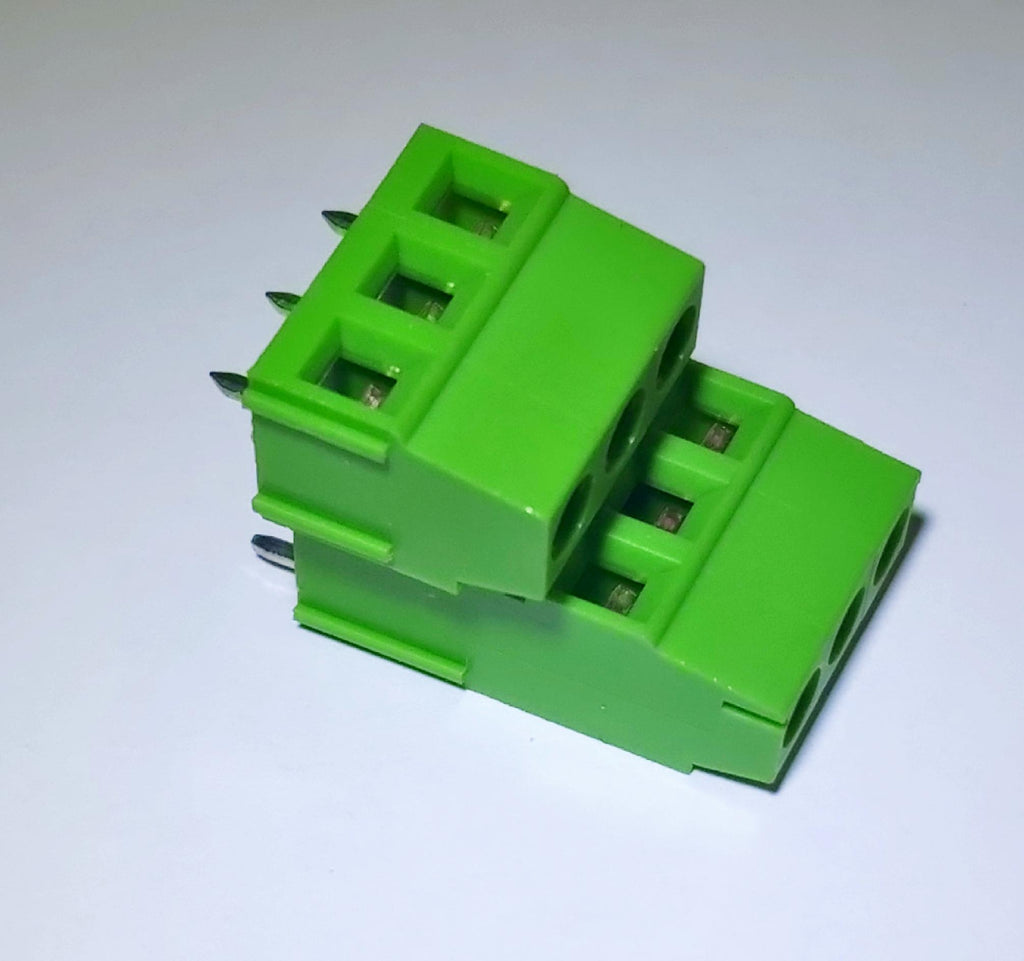

PCB Stacking Terminal Block 3pin

LE 5.00


PCB terminal block that is supplied with two levels of connection, especially suitable for small spaces. The blocks can be joined together using dovetail joints.
Specification
  • Pitch 5 mm
  • Screws: M2.5 steel Zinc plated
  • Clamp: Brass,Ni plated
  • Pin header: Brass,Tin plated

Electrical

  • Rated voltage: 300V  250V
  • Rated current: 10A    18A
  • Contact resistance: 20m
  • Insulation resistance: 5000M/DC1000V
  • Withstanding voltage: AC 2000V/1 Min
  • Wire range: 22-14AWG 2.5mm²

 Mechanical

  • Temp.Range: -40~+105
  • MAX Soldering: +250,for 5 Sec.
  • Torque: 0.4Nm(3.6Lb.in)
