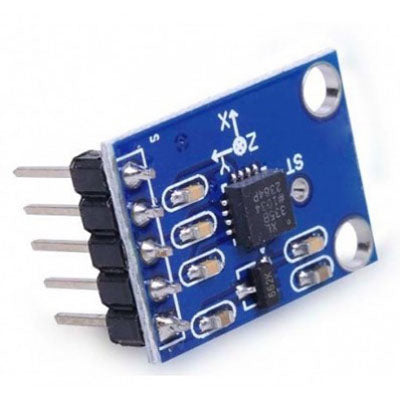

Breakout board for the well known, 3 axis ADXL335 from Analog Devices. This is the latest in a long, proven line of analog sensors . The ADXL335 is a triple axis accelerometer with extremely low noise and power consumption  The sensor has a full sensing range of +/-3g.

There is no on-board regulation, provided power should be between 1.8 and 3.6VDC.

Board comes fully assembled and tested with external components installed. The included 0.1uF capacitors set the bandwidth of each axis to 50Hz.

Dimensions: 0.7x0.7"

• Schematic
• Eagle File
• Datasheet (ADXL335)
• Wiring Example
• Bildr Example
• 3D cube project using a PIC
